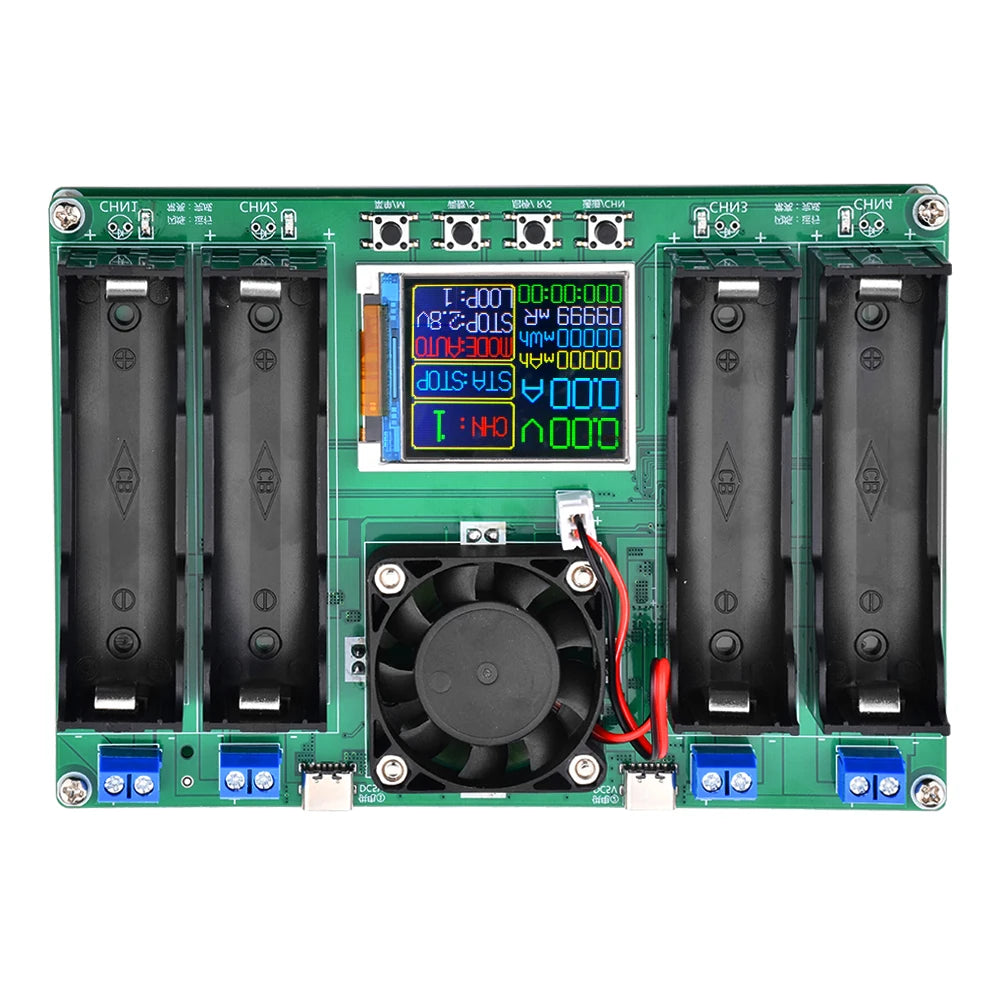

18650 Lithium Battery Capacity Tester

Product Description:

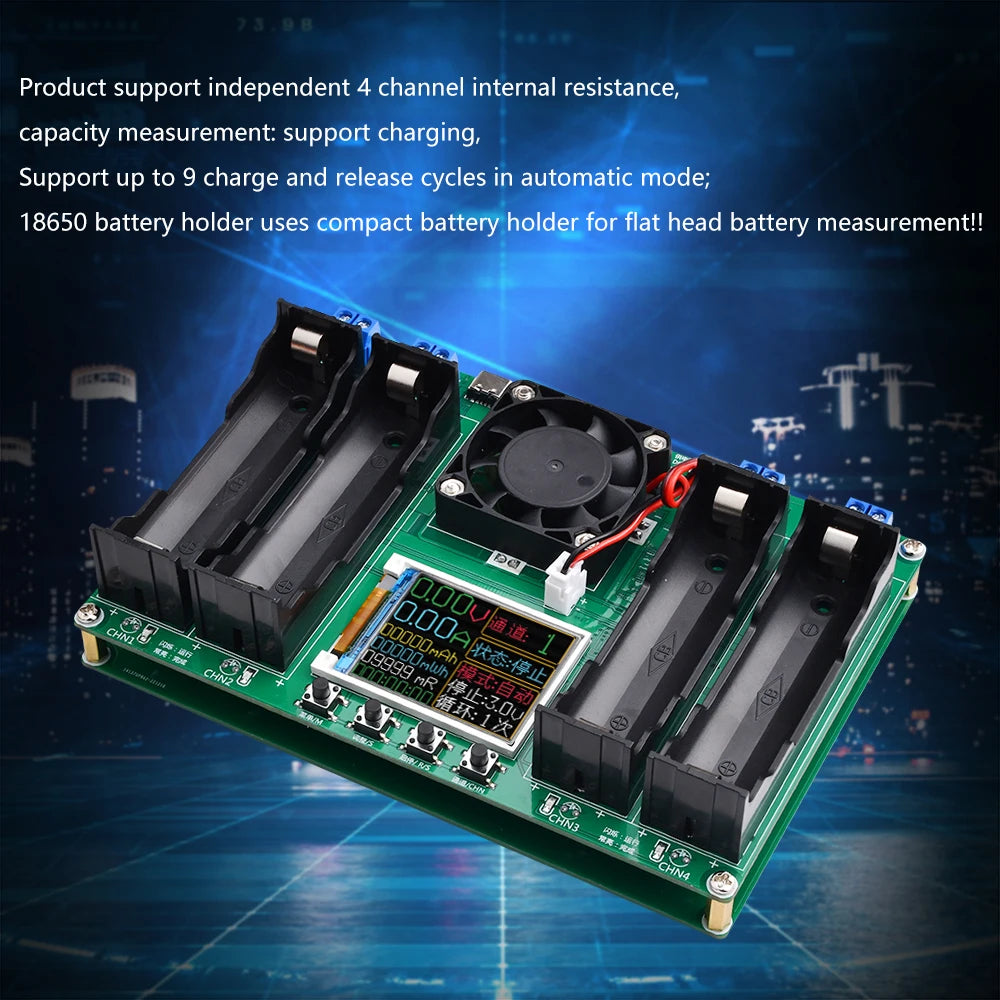

The product supports four-channel capacity, internal resistance measurement

Support individual charging, separate discharge, automatic mode support up to 9 charge and discharge cycles

Each channel is independent of each other, set separately, operates independently, and does not interfere with each other

The 18650 battery holder uses a compact battery holder for flat head battery measurements

Active fan heat dissipation Supports overheating protection

The internal resistance is tested by the DC two-wire method

Note: Lithium iron phosphate battery charging is not supported

Product Features:

Working voltage: DC5V

Material:ABS

Color: green

Applicable battery: meet the stop discharge voltage 2.5~3.5V, 2.8V start ~ 4.2V full battery is applicable

Power supply interface: two Type-C power supply interfaces (power supply and power cord are provided)

System language: English/Chinese switchable

Number of tests: 4-way charging and discharging measurement

Internal resistance measurement: Yes, the internal resistance is tested by DC two-wire method

Charging function: support, full charge automatic cut off charging (do not support lithium iron phosphate battery charging)

Discharge function: support, automatic stop when the condition is reached, discharge current is not adjustable

Auto Charge & Discharge: Yes, the battery is fully charged at the end of Auto mode

Cycle charging and discharging: support, 1~9 cycles adjustable (only supported in automatic mode)

Status Tip: Yes

Heat dissipation mode: The fan actively dissipates heat

Overtemperature protection: Yes

Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V A total of 11 levels are adjustable

Discharge current: up to about 1A current, not adjustable, does not support autonomous transformation

Charging voltage: special battery charging chip control, up to about 1A charging, full voltage 4.2V

Power failure saving: Only the setting parameters are saved, and the metering data is not saved

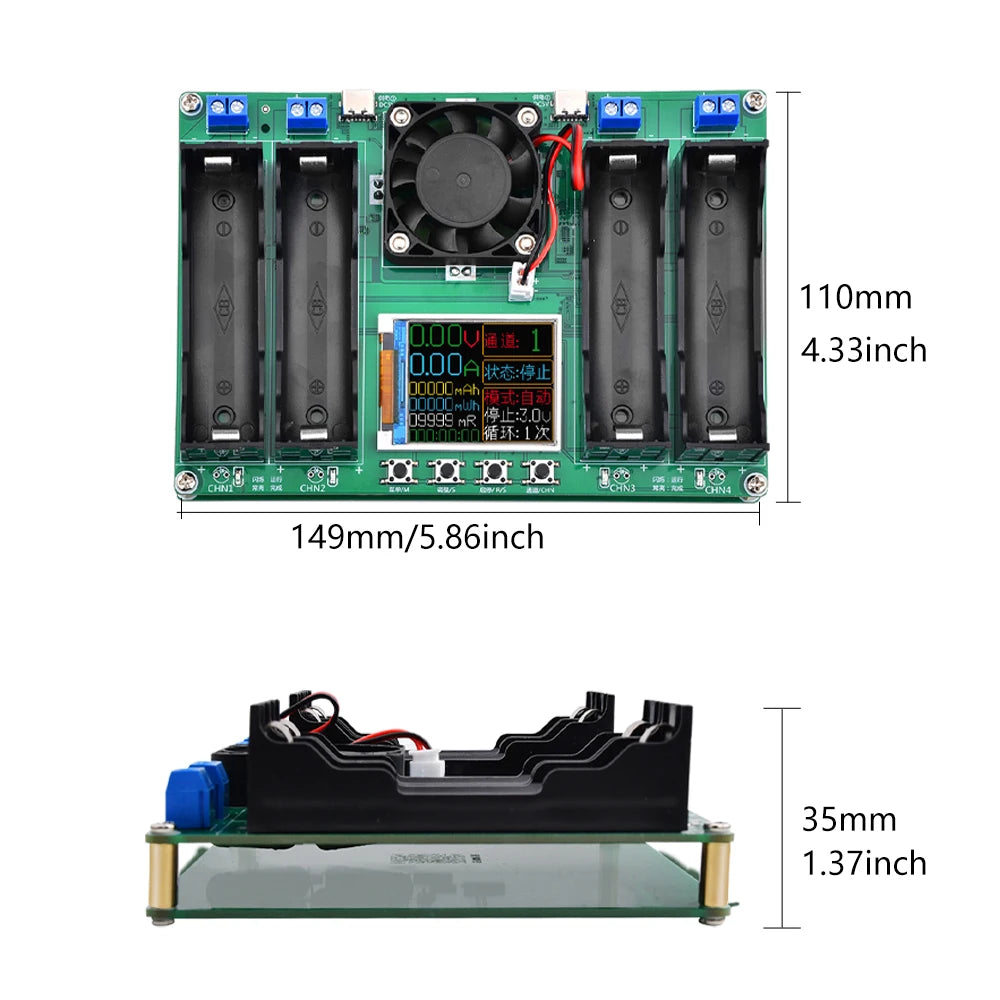

Product size: 150 × 103 × 36mm

Packing size: 182 × 112 × 50mm

Gross weight: 0.260kg

Net weight: 0.200kg

Color: Green

Information link:

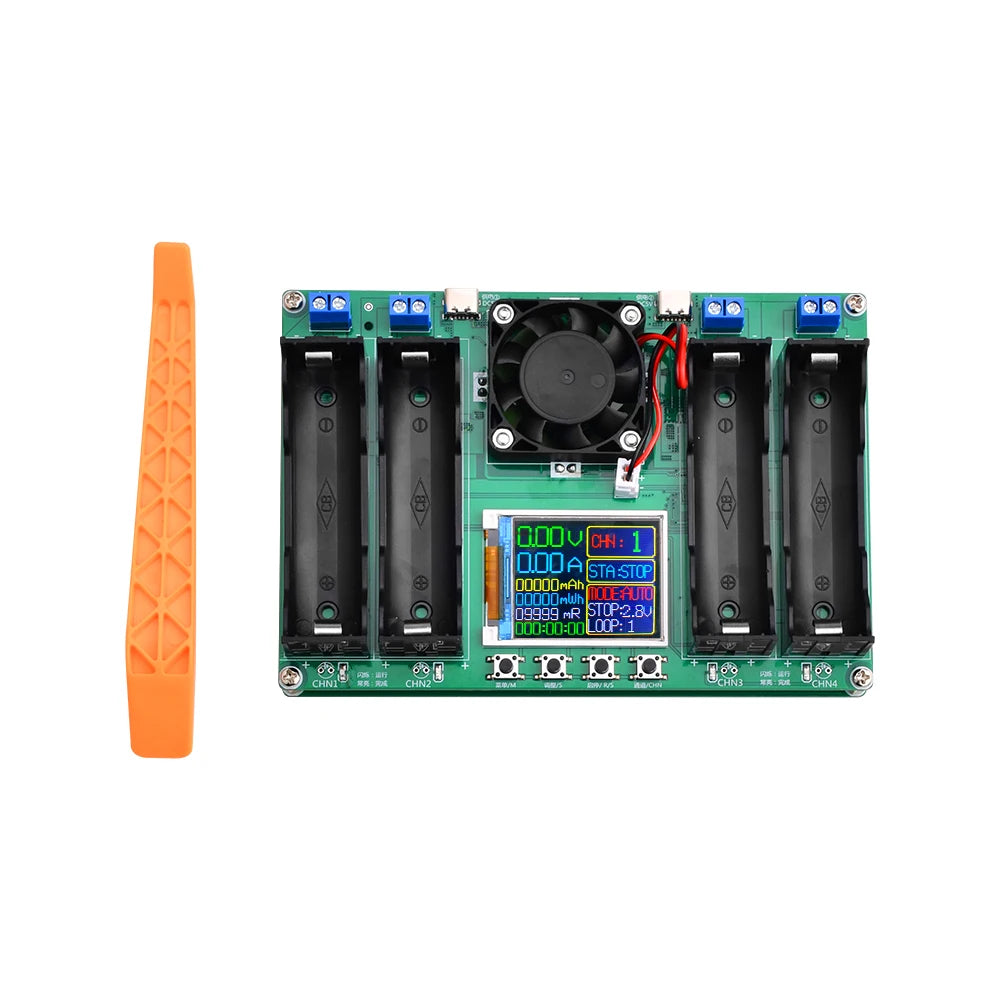

Shipping List:

18650 Battery Capacity Internal Resistance Tester X1

Crowbar X1
