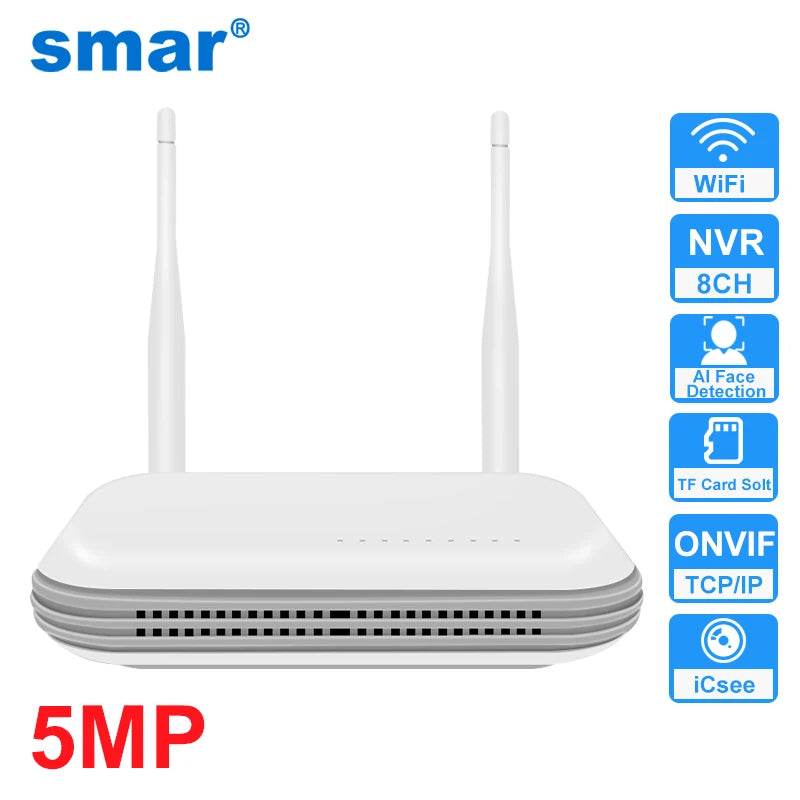

8CH Wifi NVR H.265 Network Video Recorder for 3MP/5MP Wireless System

What type of camera can work with this Wifi NVR?

1: Wired IP camera

(1) Our Brand: All Supported.

(2) Other Brand: Support NETIP and ONVIF Protocol (2.0 or 2.0 Version above)

2: Wifi Camera

We are not sure if it can be connected for use, Please purchase with caution;

If your Wifi Camera supports the ONVIF Protocol, Please use an RJ45 Cable connection as it may work.



How to find the device version of ICSee Wifi Camera? Please refer to the following picture:

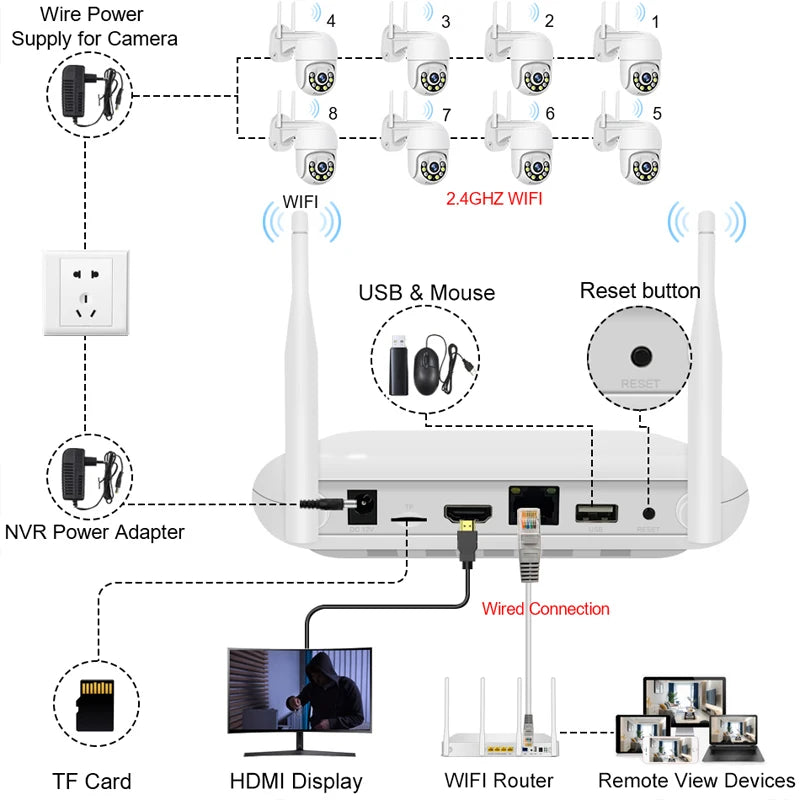

Wired IP Camera/Wifi Camera connection, Please refer to the schematic diagram:

Feature:

1. This Mini NVR suppor 3MP/5MP Wireless IP Camera, Support 8MP 4K IP Camera;
2. Support human form detection and face detection;
3. Support h.265ai / h.265 + (compatible with h.265 / H.264) video compression technology;
4. Support onvif protocol and access to third-party backend / platform;

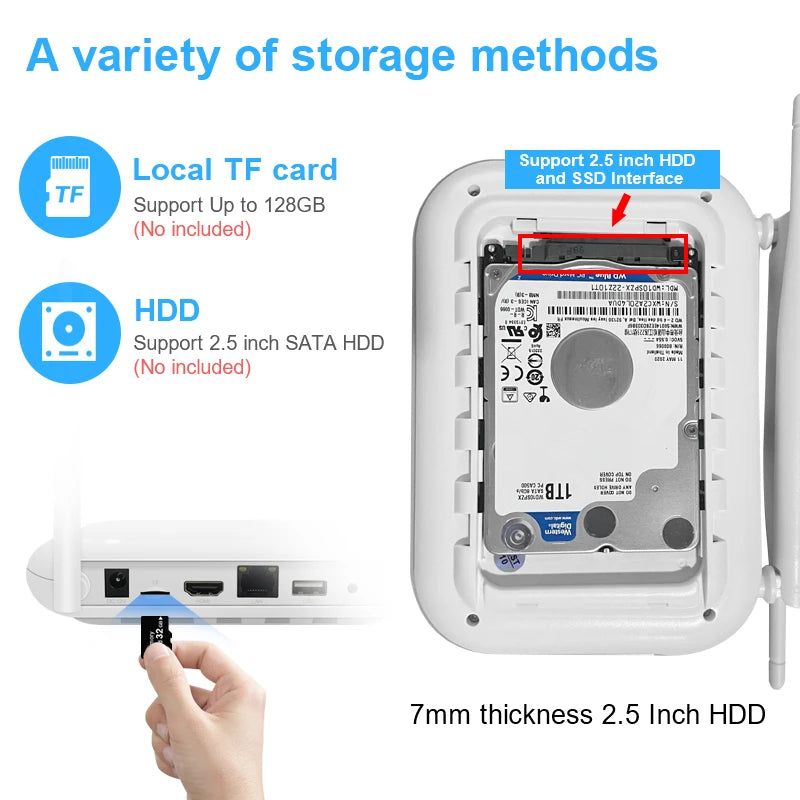

5. Support Wifi / Wired IP Camera, built-in Micro SD card slot,Support SSD port, maximum support 128GB Micro SD card and 8TB 2.5“HDD (optional at the time of purchase)
6. Supports 7x24 hours loop recording, motion detection recording, and other recording modes, you can playback the recording to view;
7. Support web side, CMS, central management platform software XMEYE;
8. Supprt Cloud technology,Realize network penetration, front and rear end docking, and push alarm information to mobile phones

Packing List

1* 8CH WIFI NVR
1* Power Adapter
1* USB Mouse
1* Wall Stickers

(Your Camera Must be support XMEye Face Detection, or will not work.)

(Your camera must support XM human detection, or will not work)

Channel Type of 8CH

Support 8CH 3MP or 4CH 5MP wired /wireless wifi cameras
For wired ip camera : camera must be support onvif protocol,only recommend to use RJ45 cable to connect wifi nvr and router.
For wifi ip camera : this wifi nvr was recommended to work with the wifi camera which application is " icsee " .
if you don't sure , pls contact us before purchasing .



Multi Languages:

English,Russian,Italian,Portuguese,Spanish,French,Germany.,

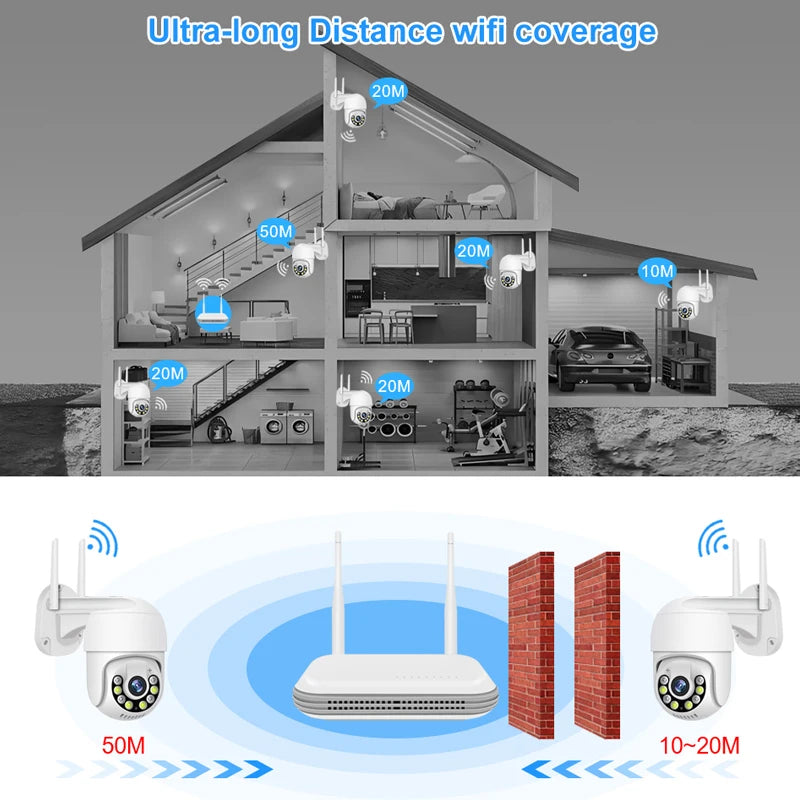

Ultra-long Distance wifi coverage

Wifi coverage can reach 50 meters without walls, 10-20 meters with one wall, and 10 meters with two walls.

Latest Cascade Technology

With the lastest cascade technology,it greatly enhances the coverage and stability of wireless signals.

Reminder:

Smar's Video Recorder all support ONVIF and NETIP Protocol;
Netip: It is a Private protocol, only applicable to Network Video Products of XM Scheme；
Onvif: It is an international open network video product standard network interface protocol；
Onvif Advantages:
Onvif likes a communication bridge, It can implement multiple devices(IP Camera and Video Recorder) from different manufacturers connected to each other, mutual Communication.
Onvif Disadvantages:
The standards of onvif protocol are also different for video network products of different manufacturers;
So,Their communication with each other will cause some bad problems, such as: motion detection can not work normally; Audio and video can't be synchronized; Loss of video data,

(Note: We recommend that when you buying the Network Video Recorder, also buying the IP Camera from our store, Because they have perfect private protocol between them, it can fully display products all of the functions.)

Plug & Play

Can be quickly pair and connect with our smar Wifi cameras,plug and play is more convenient.
(contact us if you need cameras ）

24/7 Loop Record And Playback

Advanced H.265 Video Compression

H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.
