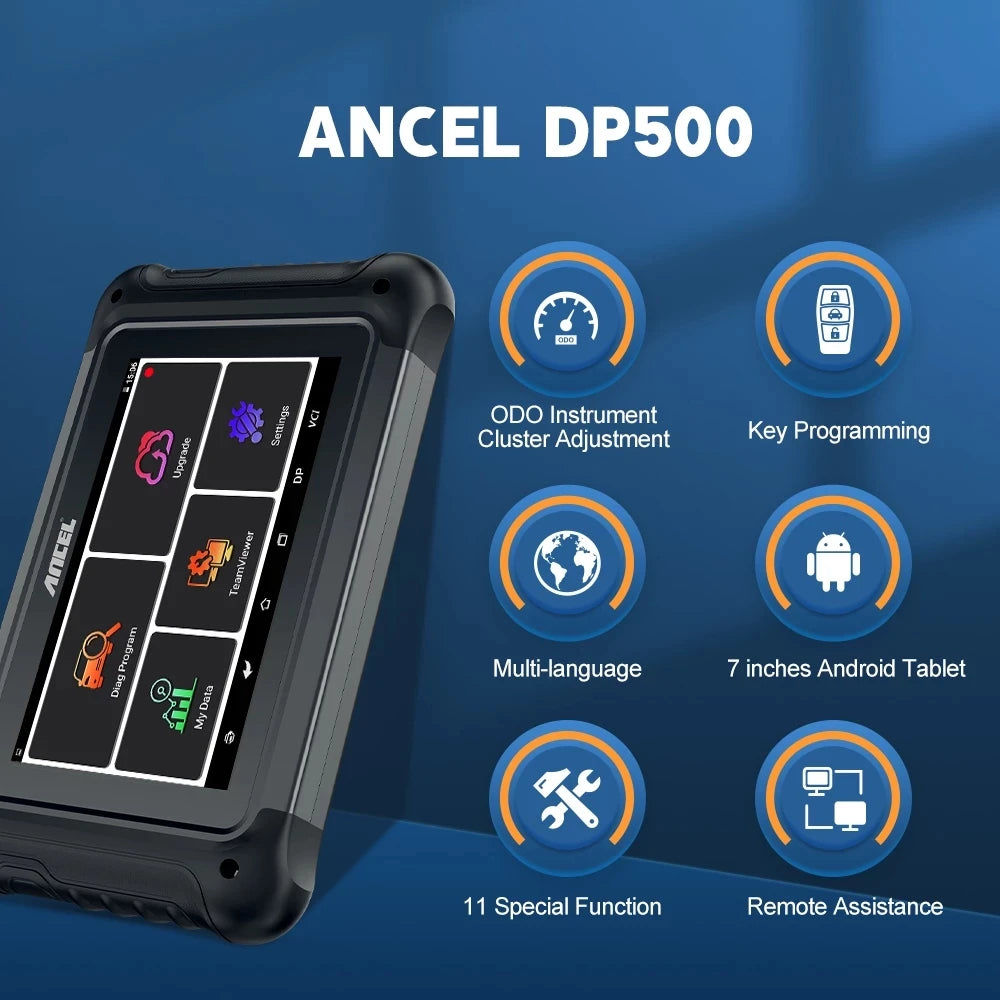

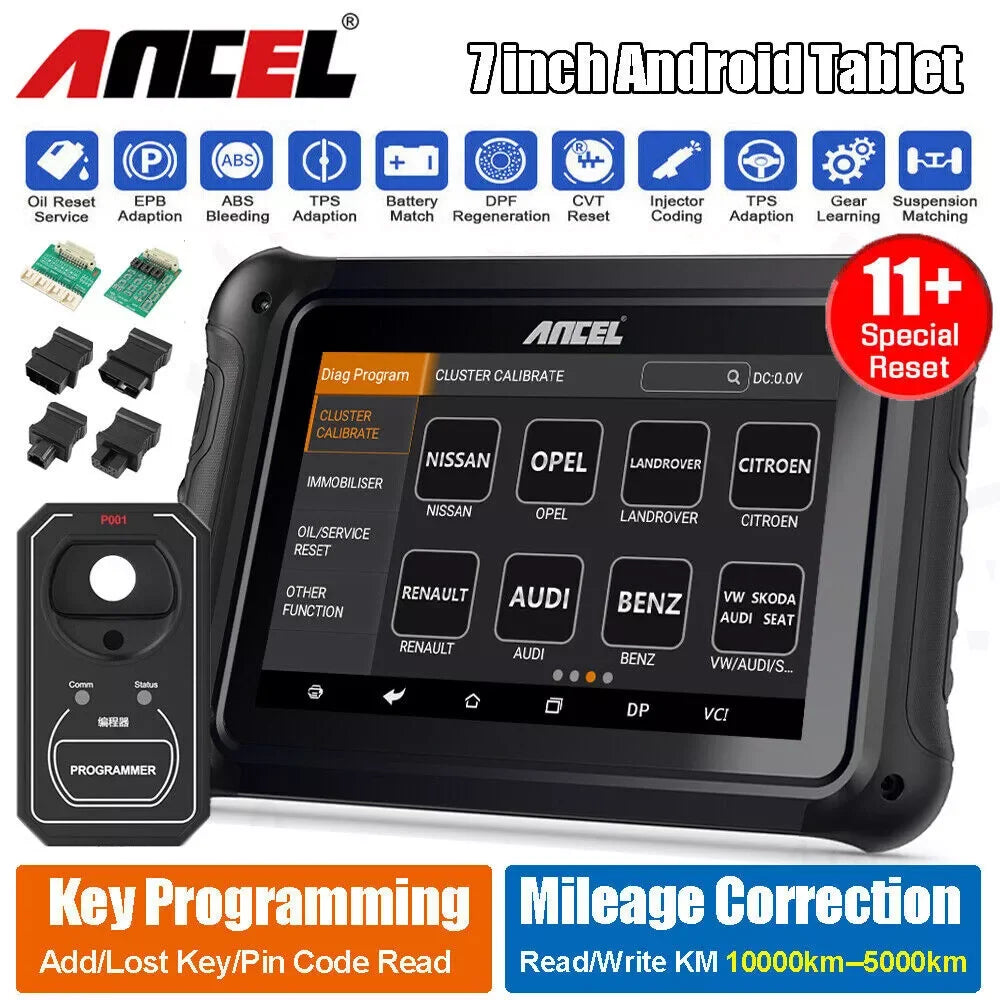

ANCEL DP500 Key Programmer Immobilizer Cluster Calibriation Instrument

ANCEL DP500 Professional Instrument Cluster Diagnose Scanner

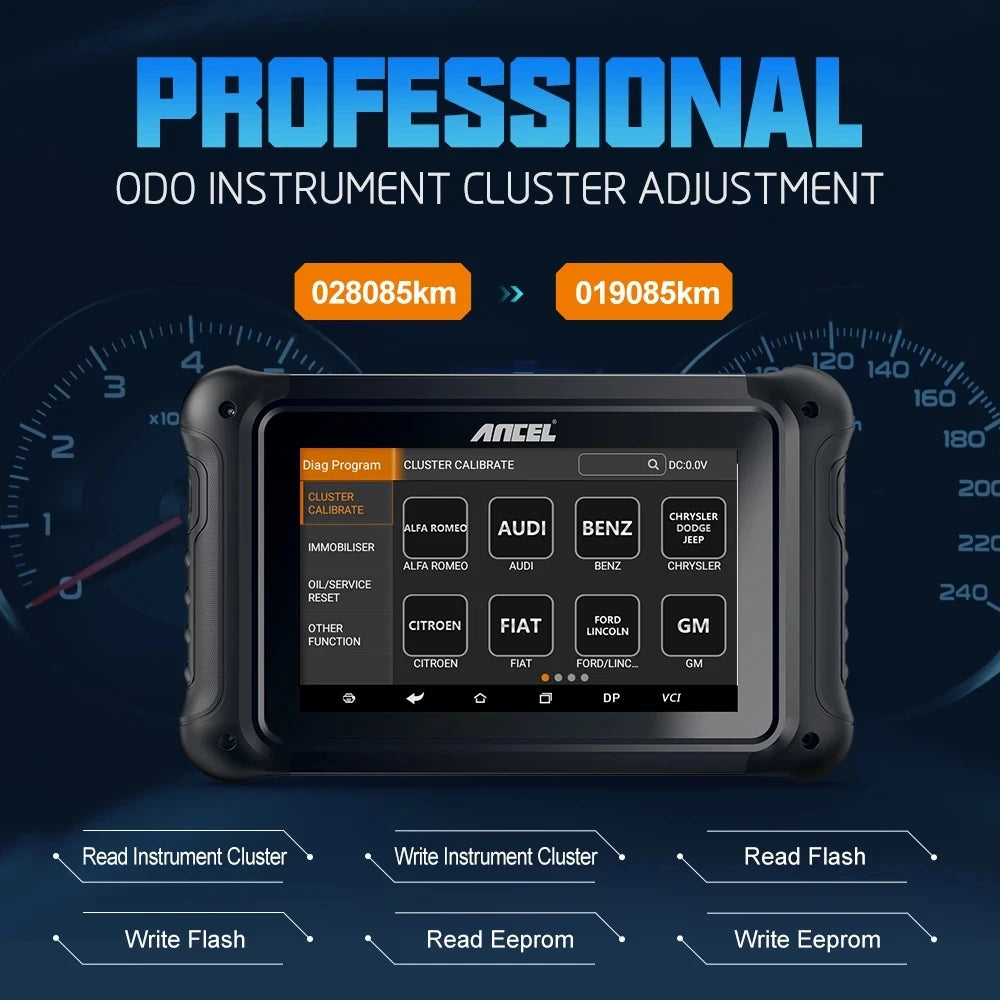

1.Write/Read Cluster

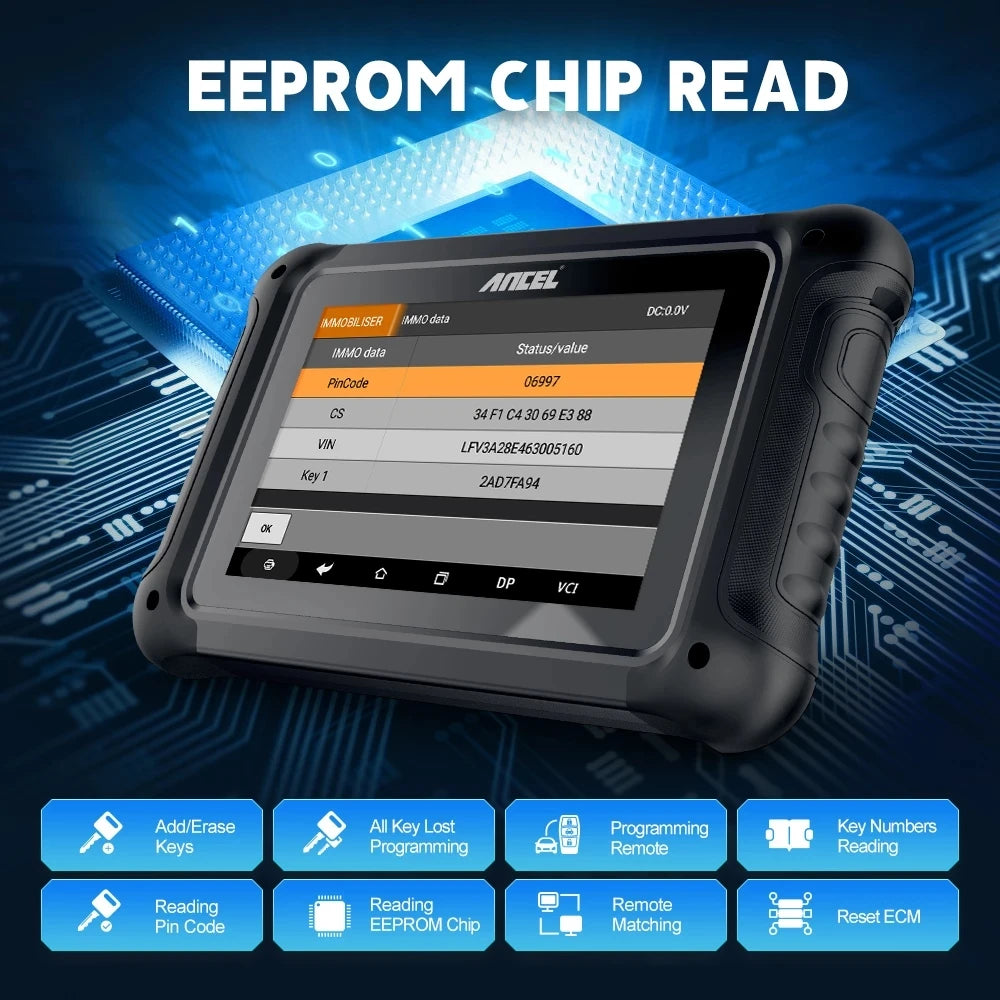

2.Read/Write EEPROM
3.Read/Write Flash

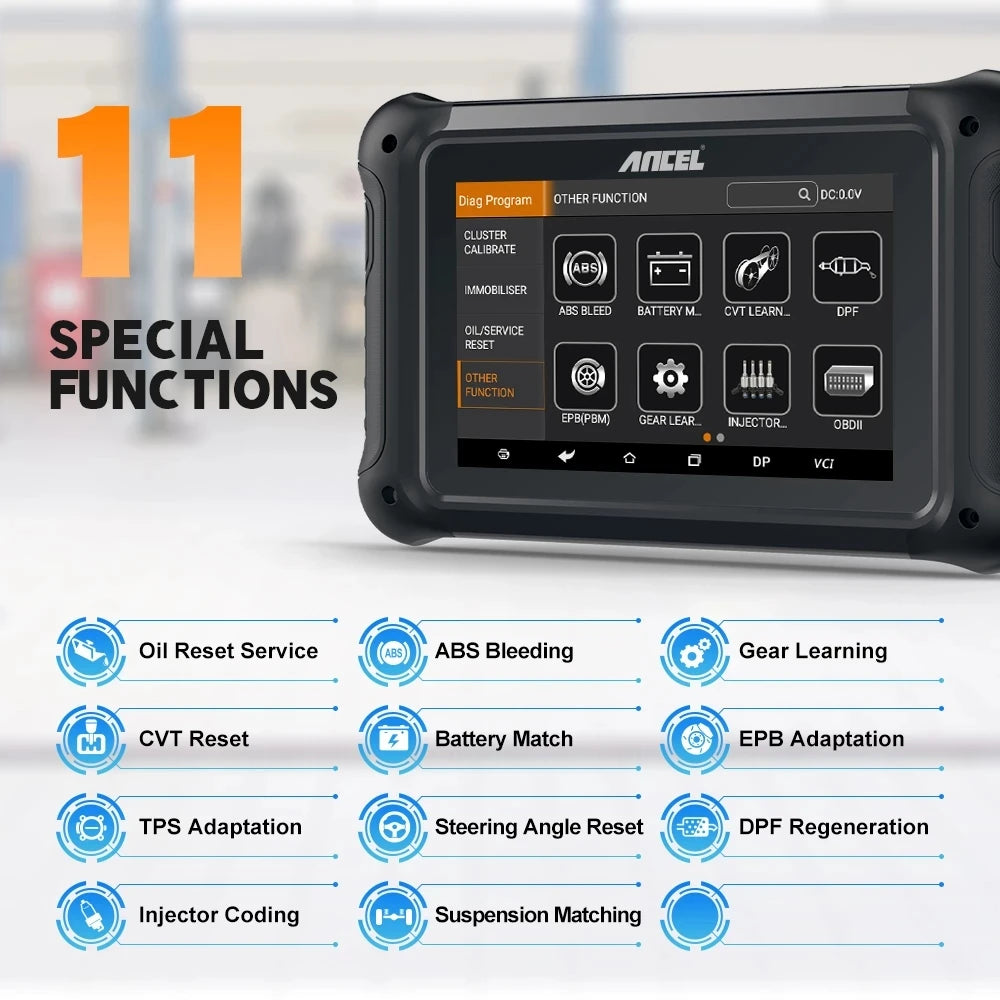

11 Kinds of Special Reset Service Functions:

1.Oil Reset Service
2.ABS Bleeding
3.Gear Learning
4.CVT Reset
5.Battery Match
6.EPB Adaptation
7.TPS Adaptation
8.Steering Angle Reset
9.DPF Regeneration
10.Injector Coding
11.Suspension Matching

ANCEL DP500 Supported Multi-languages

English, Spanish, Polish, Portuguese, French, German, Italian, Russian

PLEASE NOTE:The default language of the device is English, if you need to use other languages, please contact us and provide your product serial number, we will contact the engineer to update the language for you, thank you

One-Click Update Via WIFI

Remote Technical Support

By using this function, users can receive ad-hoc remote support from ANCEL's technical engineers, colleagues, or friends, by allowing them to control this tablet device on their PC via the TeamViewer software.

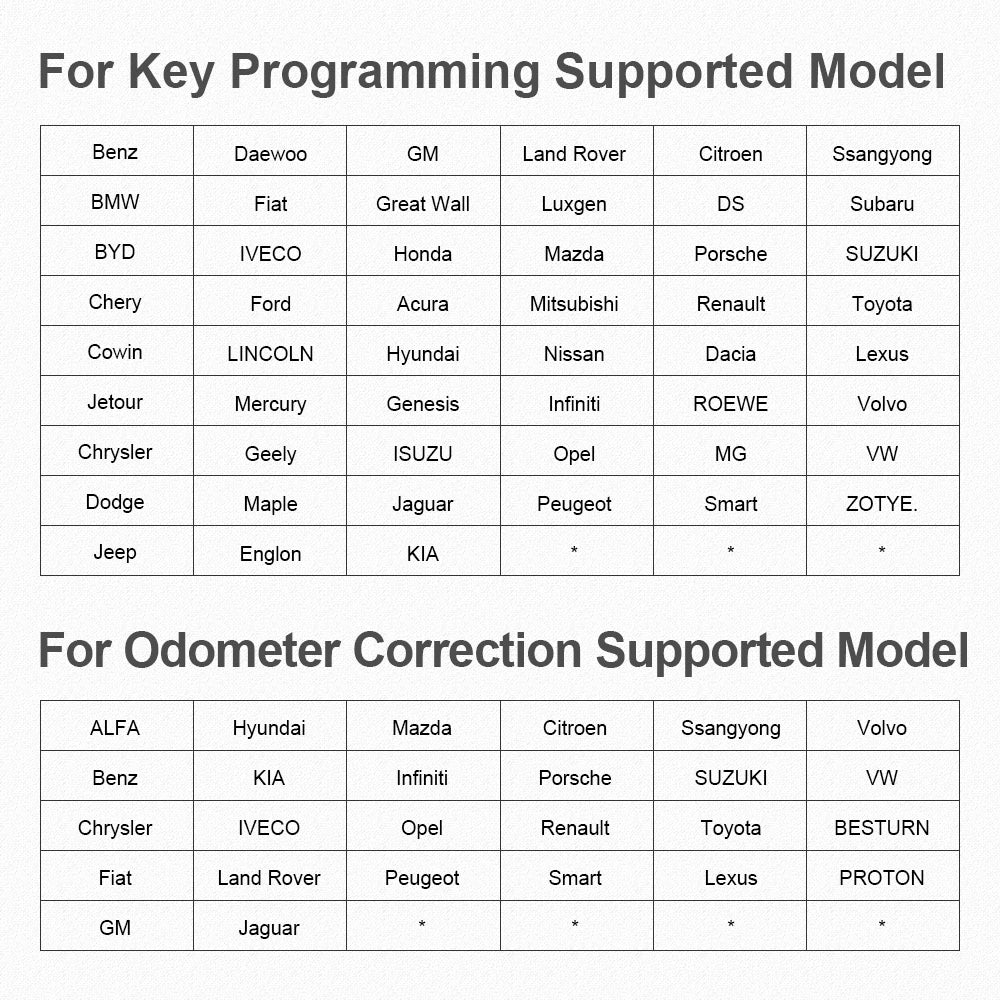

ANCEL DP500 Support Model List

For Key Programming Supported Model:
for Benz,for BMW,for BYD,for Chery,for Cowin,for Jetour,for Chrysler,for Dodge,for Jeep,for Daewoo,for Fiat,for IVECO,for Ford,for LINCOLN,for Mercury,for Geely,for Maple,for Englon,for GM,for Great Wall,for Honda,for Acura,for Hyundai,for Genesis,for ISUZU,for Jaguar,for KIA,for Land Rover,for Luxgen,for Mazda,for Mitsubishi,for Nissan,for Infiniti,for Opel,for Peugeot,for Citroen,for DS,for Porsche,for Renault,for Dacia,for ROEWE,for MG,for Smart,for Ssangyong,for Subaru,for SUZUKI,for Toyota,for Lexus,for Volvo,for VW,for ZOTYE.

Key Programming Highlights:
-Ford EXPLORER/EXPLORER SPORT/TRANSIT CUSTOM/RANGER/FUSION etc supports up to 2019 -Renault CLIO/CAPTURE/DUSTER/KOLEOS etc supports up to 2015 -GM EQUINOX/MALIBU/TERRAIN supports to 2020 -GM CASCADA/ENCLAVE/REGAL/ESCALADE/CAMARO/IMPALA etc supports up to 2019 -Hyundai ACCENT/ELANTRA SEDAN/G90/GENESIS/KONA/SONATA etc supports up to 2019 -Landrover DISCOVERY 4/RANGE ROVER/RANGE ROVER EVOQUE supports up to 2015
-Volvo S60/V40/XC60 supports to 2017 -MAZDA MAZDA 6/MAZDA CX-3/MAZDA CX-5 etc supports up to 2018

For Instrument Cluster Supported Model:
for ALFA,for Benz,for Chrysler,for Fiat,for GM,for Hyundai,for KIA,for IVECO,for Land Rover,for Jaguar,for Mazda,for Infiniti,for Opel,for Peugeot,for Citroen,for Porsche,for Renault,for Smart,for Ssangyong,for SUZUKI,for Toyota,for Lexus,for Volvo,for VW,for BESTURN,for PROTON

Instrument Cluster Highlights:
-Chrysler 300C/PACIFICA/CHALLENGER/CHARGER/DURANGO/RAM etc supports up to 2018 -Ford F250/F350/F450/F550/FIGO/ASPIRE/KA supports up to 2018 -Renault CAPTUR/CLIO/TRAFIC IV supports up to 2017
-GM TRAILBLAZER supports up to 2019
-GM ESCALADE / XTS / COLORADO supports up to 2018 -Support part of ALFA/Porsche cluster correction

Product Specifications

● Operation system: Android 5.1.1
● CPU: RK3128 Quad-Core，ARM Cortex A7@1.2Ghz
● Battery: 3800mA, rechargeable polymer lithium battery
● Extension memory card: 32G Micro SD (TF) card supported
● Memory capacity: 16GB
● LCD: 7.0 inches
● LCD resolution: 800*480
● Touch screen: Capacitive touch screen
● Wi-Fi: supported
● Working temperature: -20℃~55℃（14℉~131℉）
● Storage temperature: -20℃~70℃（-4℉~158℉）
● Dimension: 245*149*35 mm

Product Detail

Product Package

1*Main Tablet
1*User's Manual
1*Quick Start Guide
1*P001 Programmer Unit
1*C001
1*C002
1*EU/US Charger
1*Honda-3
1*Hyundai-10
1*Kia-20
1*OBDII-16 Connector
1*Main Cable
1*W001
