ANENG DM850 Digital Multimeter 1999 Counts Eletric Professional
ANENG DM850 Digital Multimeter 1999 Counts Eletric Professional
Couldn't load pickup availability
• Automatic AC/DC Voltage Testing :The ANENG DM850 1999 Counts Digital Multimeter can automatically test AC and DC voltage, making it easier and more efficient to use.
• Wide Range of Current Testing :With the ability to test currents up to 10A, this multimeter is perfect for a wide range of electrical applications.
• Digital Display :The digital display on the ANENG DM850 1999 Counts Digital Multimeter provides accurate and easy-to-read results, making it a reliable tool for any electrician.
• Data Retention :The multimeter has the ability to retain data, allowing users to track and monitor electrical signals over time.
• Digital Display :The digital display provides accurate and easy-to-read measurements, making it simple to understand the results of your tests.
• Automatic AC/DC Voltage Testing :With the ability to test both AC and DC voltage, this multimeter is versatile and can be used for a wide range of electrical applications.
• High Voltage Testing :With a maximum voltage testing capability of 600V, this multimeter is suitable for testing high-voltage circuits and components.
• Current Ohm Ammeter Detector :The current ohmmeter function allows you to measure the resistance of materials, making it useful for troubleshooting electrical circuits.
General:
This instrument is a compact pocket-sized digital multimeter for measuring AC&DC voltage,DC Current,Resistance and Diode.Also provide Temperature,audible continuity test function or can be used as single generator.Full range overload protection and low battery indication are provided.They are the ideal instrument for use in fields,such as laboratory,workshop,DIYers,and the home applications.
Specification:
Function |
Range |
Accuracy |
DC Voltage |
200mV |
+-(2% of rdg+3D) |
2000mV/20V/200V |
+-(2% of rdg+5D) |
|
600V |
+-(2.5% of rdg+5D) |
|
AC Voltage |
200V/600V |
+-(2% of rdg+10D) |
Frequency Range |
45Hz~450Hz |
|
Audible Continuity Test |
Yes |
|
DC Current |
200uA/2000uA/20mA |
+-(2% of rdg+2D) |
200mA |
+-(2.5% of rdg+2D) |
|
10A |
+-(2.5% of rdg+10D) |
|
Resistance |
200Ω |
+-(2.5% of rdg+10D) |
2000Ω/20kΩ/200kΩ/2000kΩ |
+-(2.5% of rdg+4D) |
|
Overload Protection |
15 second |
Package:

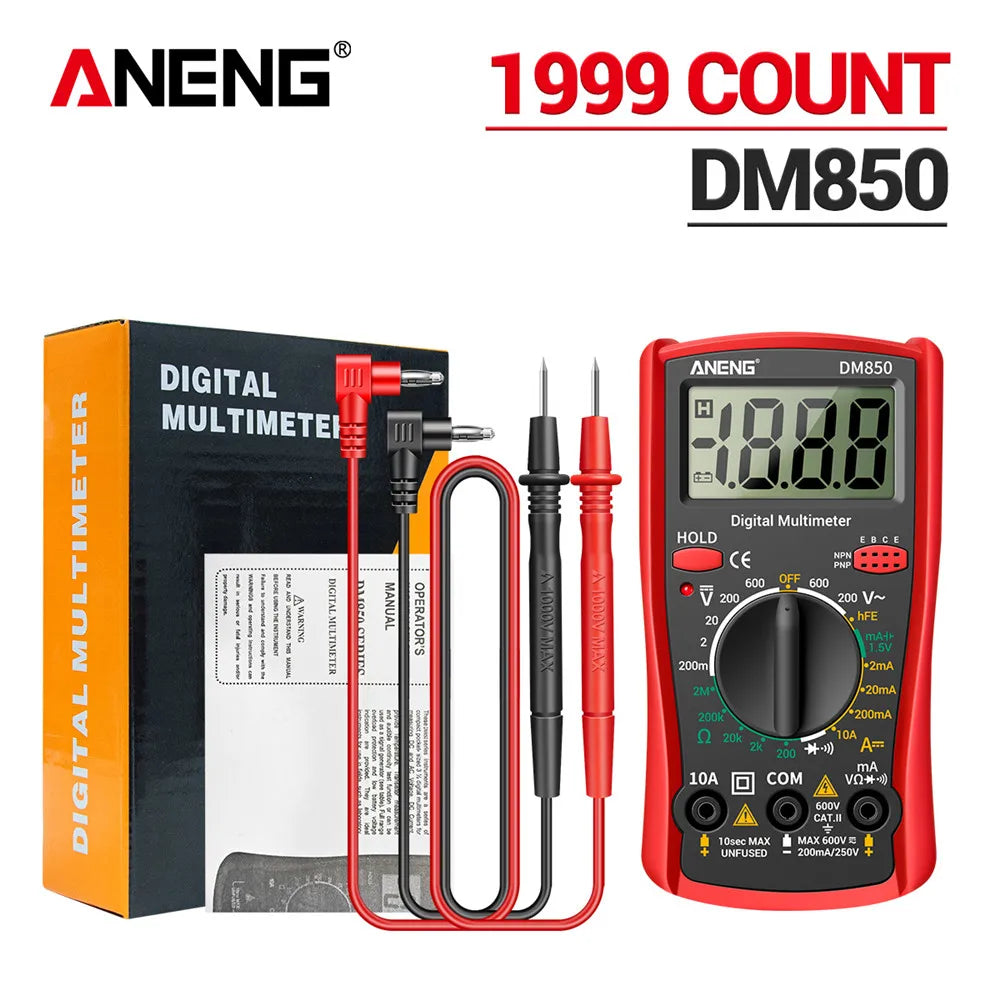

1*Multimeter
1*test leads
1*manual
1*outer packing box
