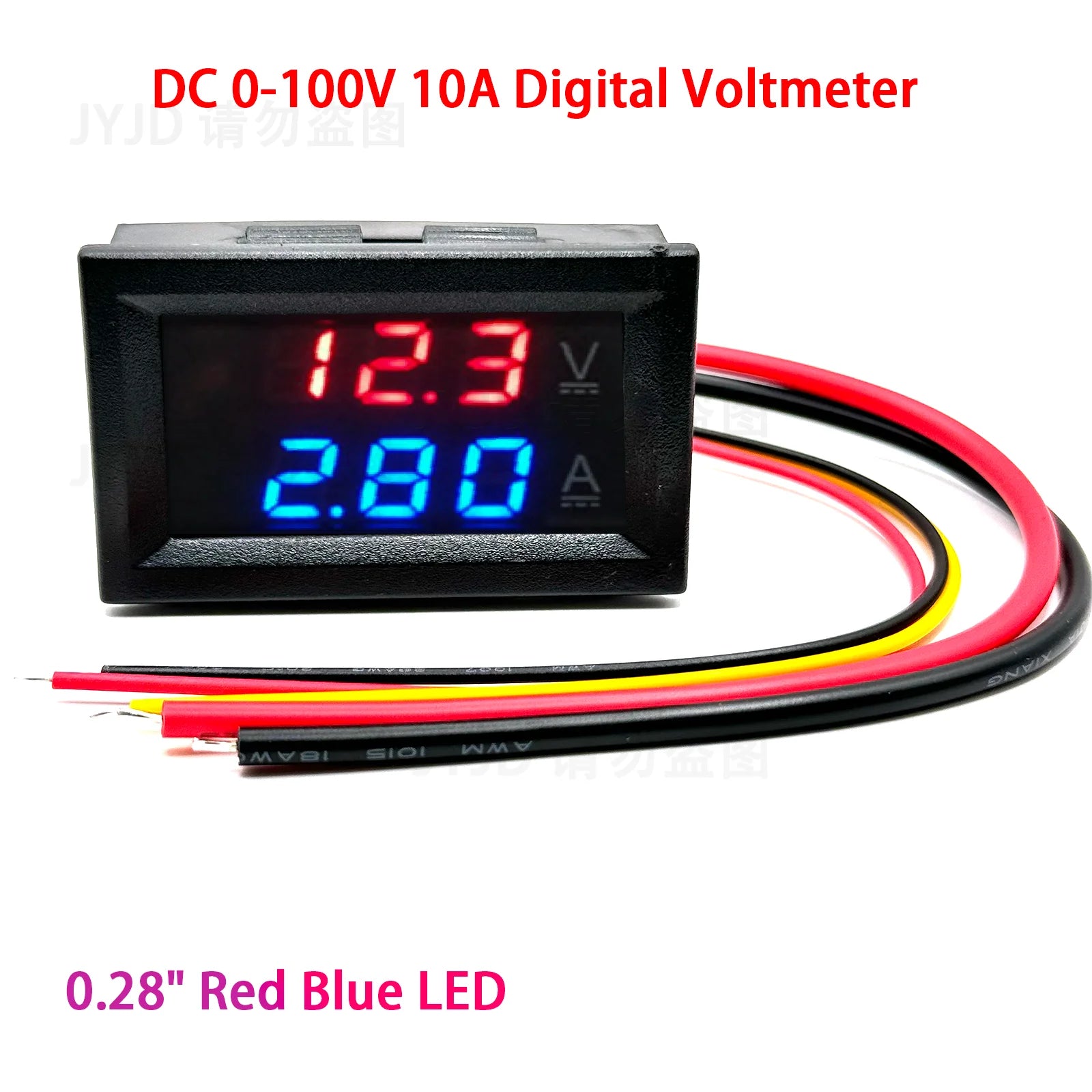

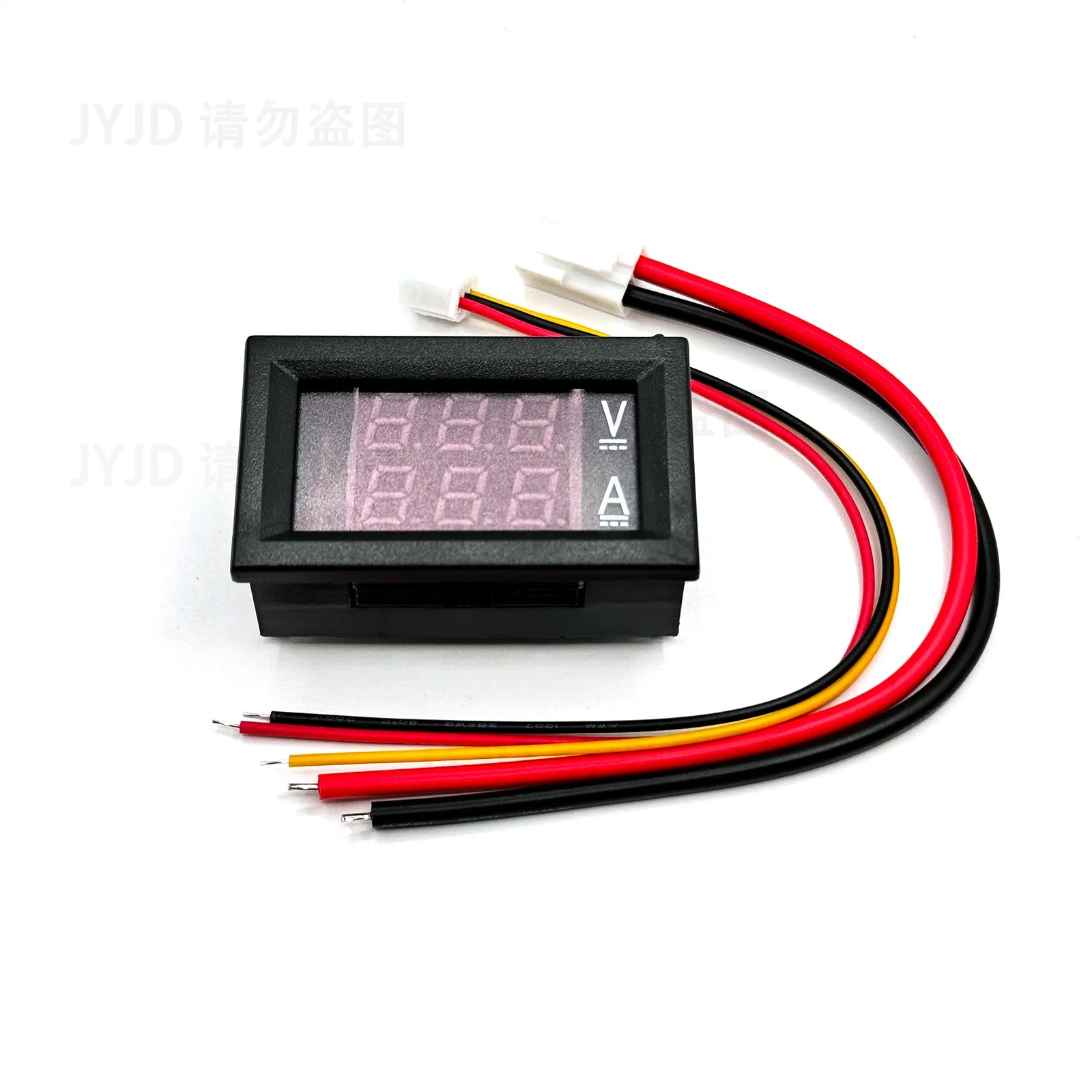

DC 0-100V 10A Digital Voltmeter Ammeter Dual Display Voltage Detector

Specifications:

    Working voltage of Meter itself:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
    Working current of Meter itself:≤20mA
    Voltage Measuring range: DC 0 - 100V
    Current Measuring range: DC 0 - 10A
    Voltage resolution (V): 0.1V
    Current resolution (A): 0.01A
    Measure accuracy: 1% (± 1 digit)
    Display: 0.28" digital tube, Two color blue and red
    Refresh rate: about 300mS / times
    Dimensions:48mm*29mm*26mm
    Operation Temp: -10°-+65°

Wiring:

Package Include:

    1x DC 100V 10A Voltmeter & Ammeter
