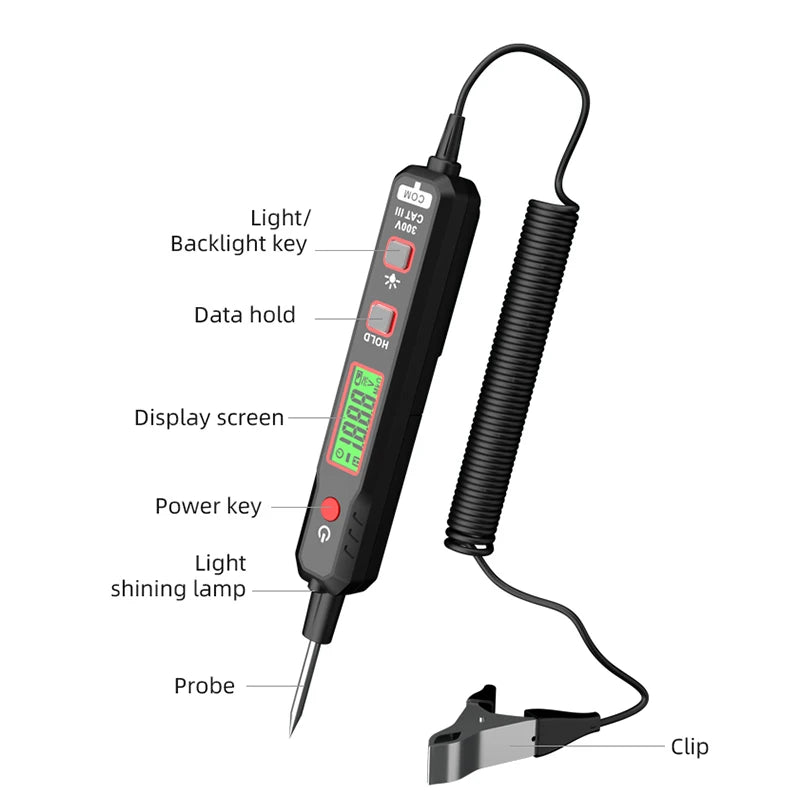

HT86A Car Voltage Detector Pen Automobile Fault Maintenance Circuit

HT86A Car Voltage Detector Pen Automobile Fault Maintenance Circuit Tester Digital Backlight Car Fuse Diagnostic Probe Test Pen

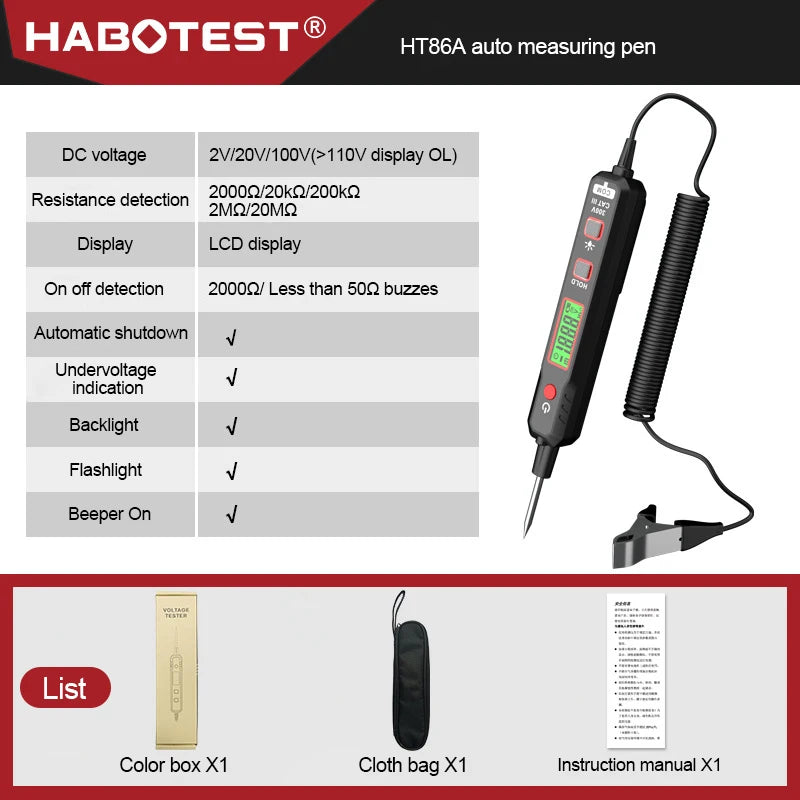

Specifications:

●Models: HT86A

●Display: LCD display

●Range of voltage detection: DC 0.8~100V

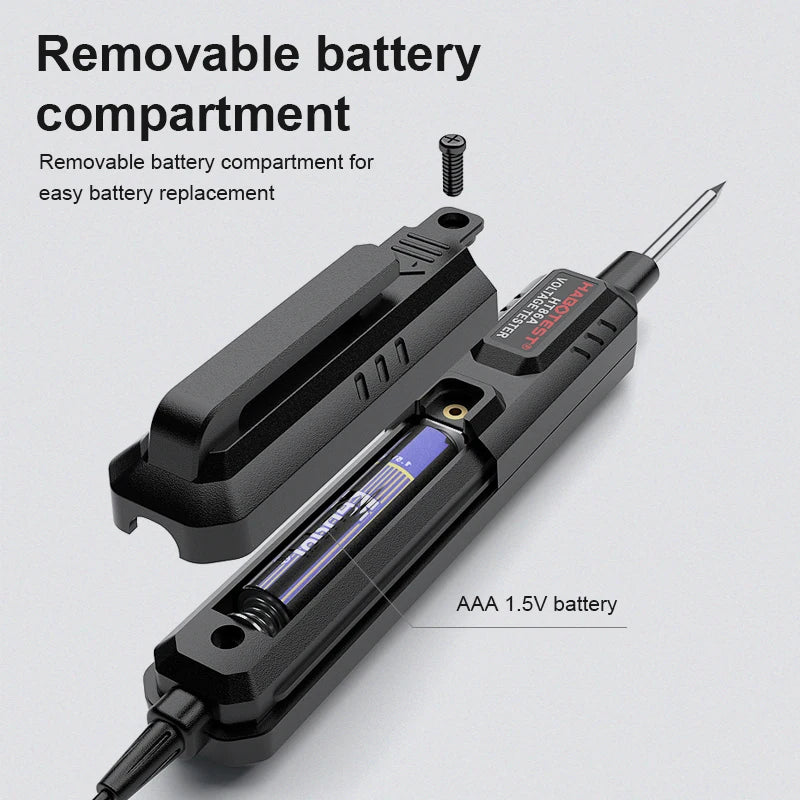

●Power Supply: 1*1.5V AAA battery(not included)

●On off detection: 2000Ω/less than 50Ω, buzzer prompt

●Automatic shutdown: Yes

●Undervoltage indication: Yes

●Buzzer prompt: Yes

●Backlight: Yes

●Flashlight: Yes

Features:

1. Multi-function real-time detection: DC Voltage detection, On-off testing, Resistance test, data hold.

2. Compact body and easy to carry.

3. Voltage detection: The HT86A Detect the DC voltage, the HT86B can detect DC AC voltage

4. On-off testing, Find break points: If the wire resistance is below 500Ω, the buzzer will be prompt.

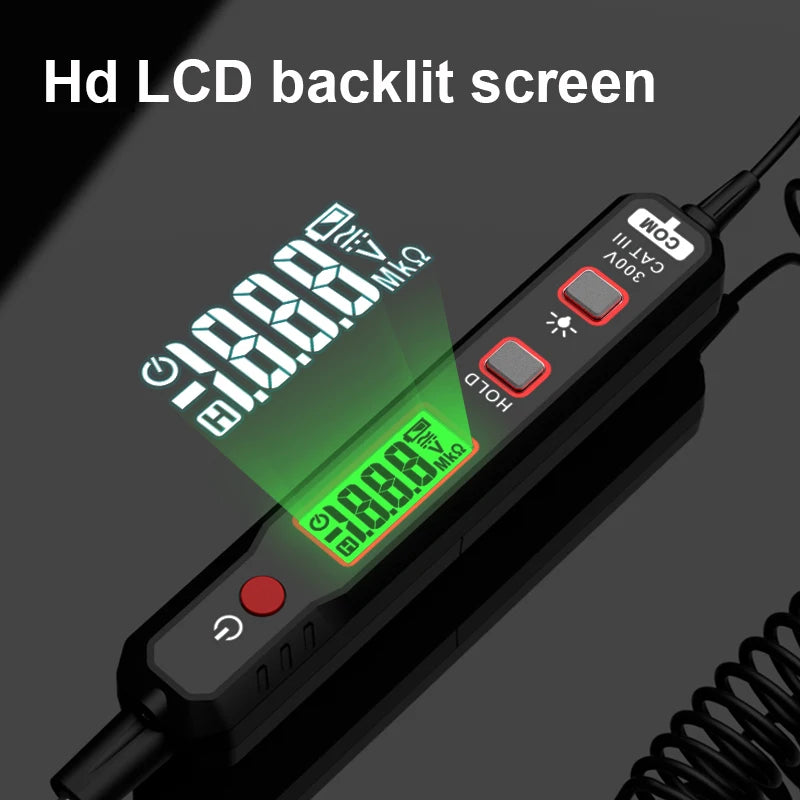

5. HD LCD backlight screen: High definition LCD display, suitable for measurement in various environments.

6. LED lighting function: Provides lighting in dark environments.

7. Auto power off: The pen will shut down automatically if there is no operation after a few minutes.

Measuring Range:

DC voltage detection: 2.000V/20.00V/100V (OL will be displayed if>110V)

Resistance test: 2000Ω /20.00KΩ /200.0KΩ /2.000MΩ /20.00MΩ

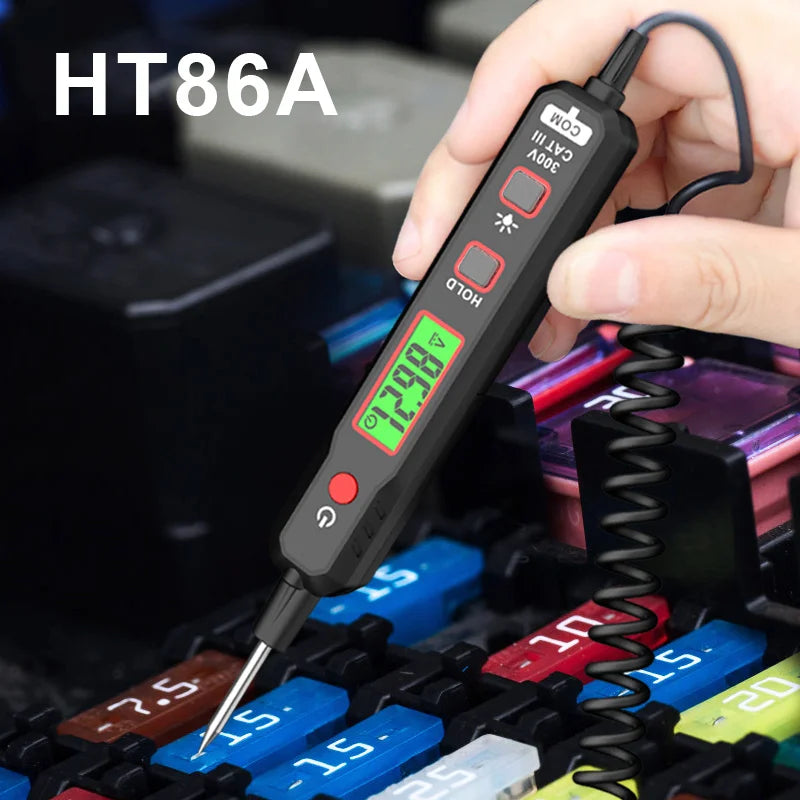

The fuse or circuit can be tested under the following conditions:

1. Fog lights don't work

2. The car horn doesn't work

3. The headlights don't work

4. The car won't start

5. Car navigation does not work

6. The air conditioner doesn't work

7. The skylight does not open

8. The air conditioner doesn't work

9. Cigar lighter does not work

10. Backup lamp does not work

11. The stereo does not work

12. Turn signal lamp does not work

Notes:

1. Please allow slight dimension difference due to different manual measurement.

2. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

3. After receiving the goods, if you have any questions, please contact us first, we will be responsible for every buyer.
