JCID JC intelligent Maintenance Drawing Schematic Diagram Bitmap for

JC Schematic Diagram Bitmap Online Account JCID Intelligent Drawing For iPhone Android Cell Phone Circuit integrated Bitmap

Note :

JC Monthly Card can only be used once each user, and need to order 3 months or 1 year card next time.

Features :

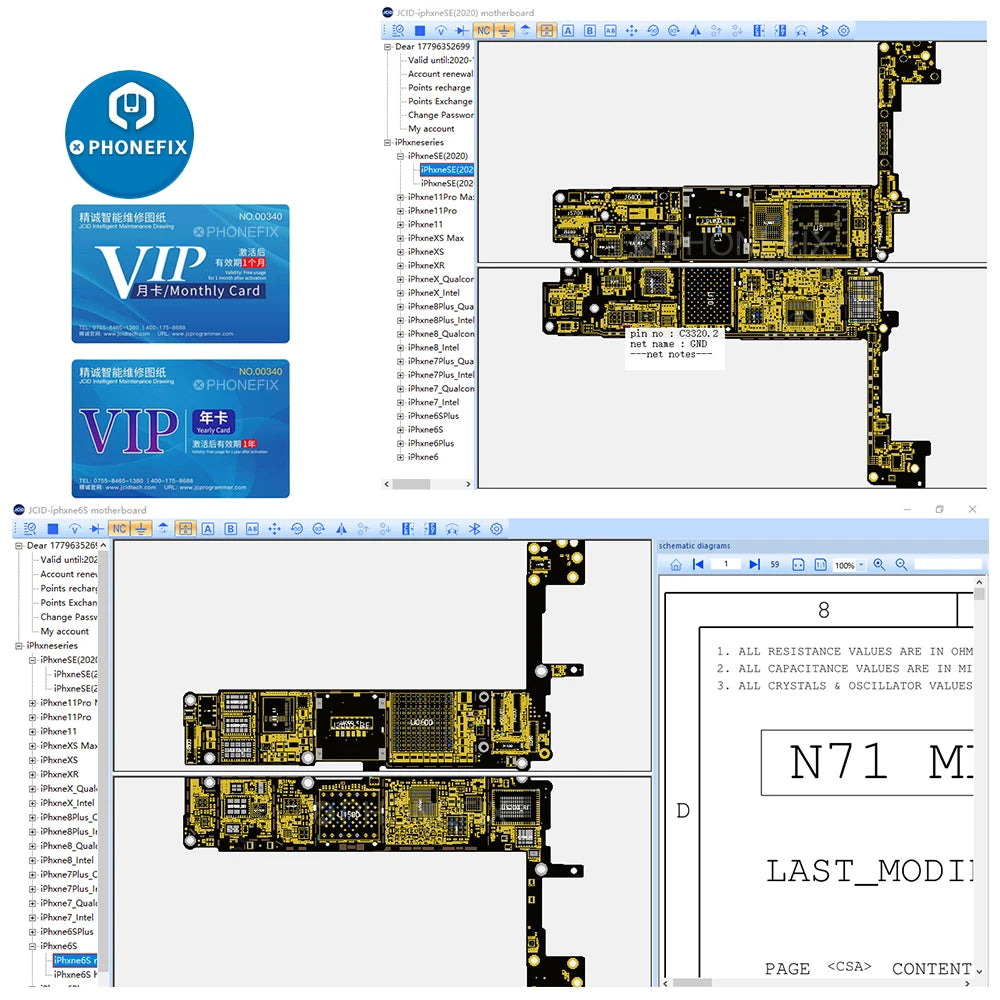

1. Add maintenance map + block diagram, any selected content can be matched with the index node bitmap automatically, maintenance ideas appear on the paper.

2. Initiate notes function, notes can be targeted to specific components and net, creating a user specific database.

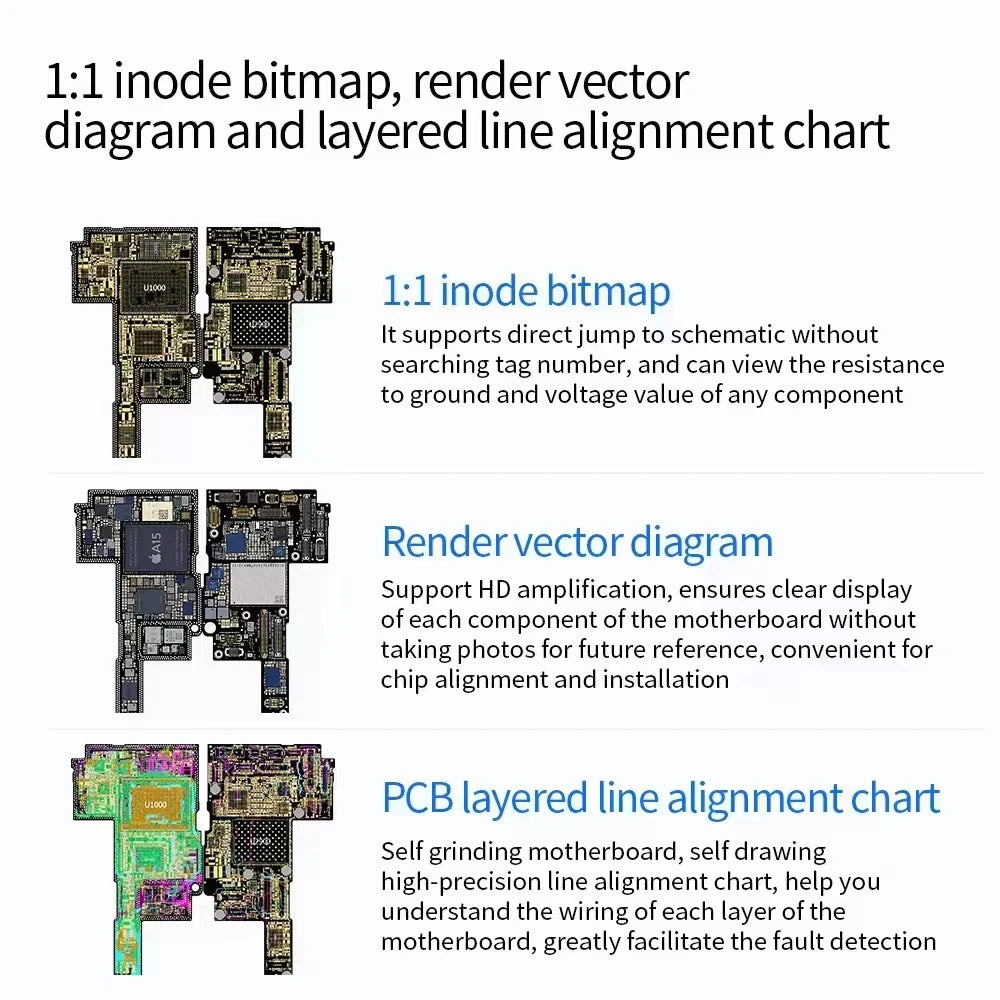

3. Physical picture. PCB Diagram can be switched manually, users can view the ground resistance value and voltage value of any component.

,for iPad and Android Models continue to be updated.

Wuxinji software website and tutorial video

ZXW Tools Schematic Diagram Bitmap WXJ Wuxinji JCID Intelligent Drawing for iPhone Android ipad Circuit integrated Diagram Bitmap

The activation code will be issued within 24 hours after payment .

ZXW online account phone circuit diagram for repair/diagnose

iPhone/iPad/Samsung/xiaomi/huawei logic boards. ZXW online circuit diagram now has 30 days and 1 year to activate. ZXW V3.0 software online account has replaced old ZXW dongle, with blackfish function, mobile phone circuit board easily measured, pads circuit diagram Network.

2.Enter the registered account name, account password and correct verification code to SUBMIT

2.Enter the registered account name, account password and correct verification code to SUBMIT

4.Click Authorization Code Renewal on the left side menu to enter the renewal page.

(Please note the String spaces, If there has string spaces , it will show String Error , it cannot be activated successfully, you need to delete the string spaces when enter code.)

5. Open the ZXWTEAM software digital authorization code and tear the internal page from the right side to have the authorization code serial number and password.( Generally, we send the code in store chatting Box directly )

6.Enter the correct serial number and password, clickImmediate use, and when it displaysAuthorization Code Used Successfullyis OK
