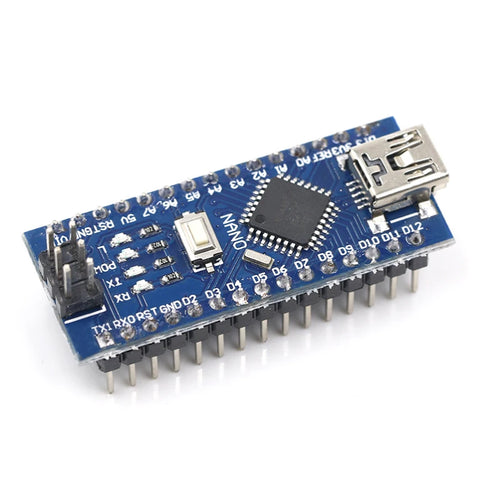

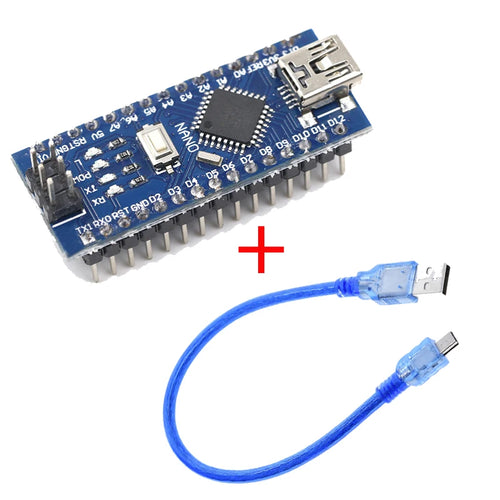

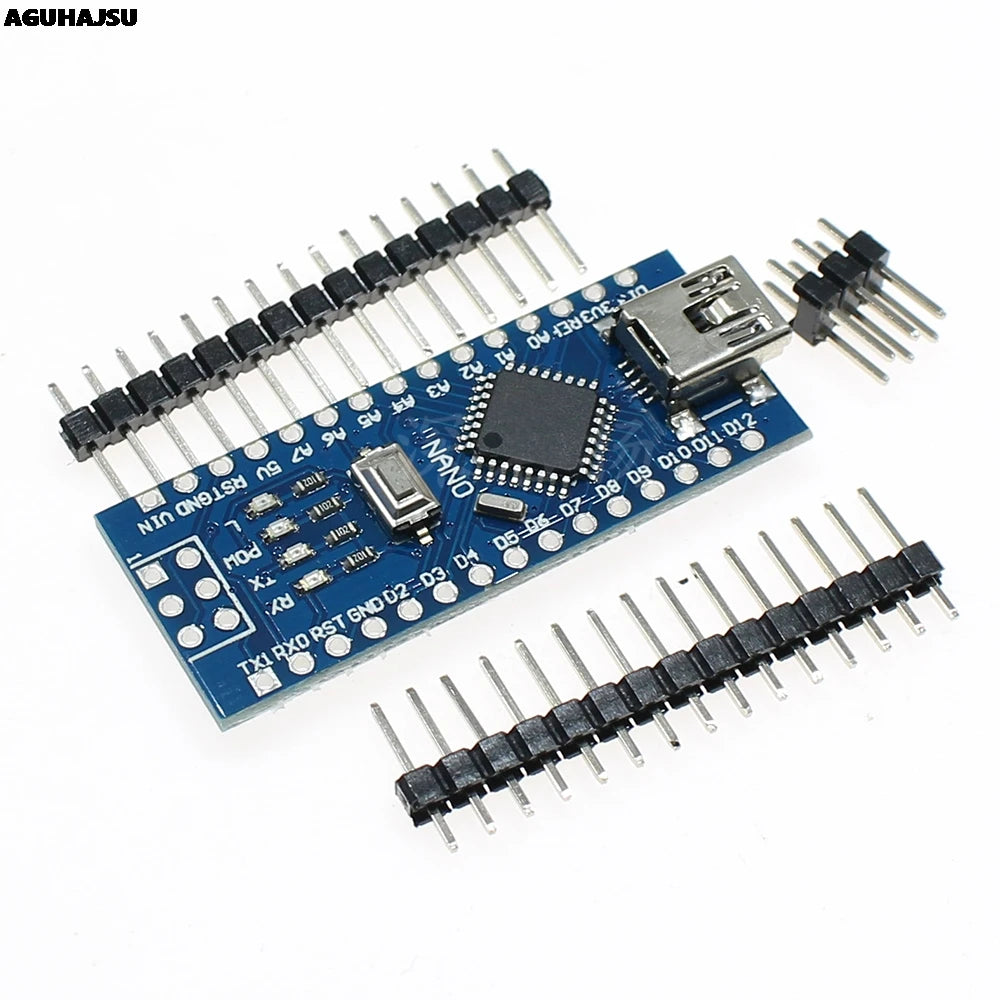

Nano 1PCS Mini USB With the bootloader Nano 3.0 controller compatible
Nano 1PCS Mini USB With the bootloader Nano 3.0 controller compatible
Regular price
GH₵83.94
Regular price
Sale price
GH₵83.94
Unit price
per
Couldn't load pickup availability
CH340 USB Driver, atmega328P main IC, bootload has been written to the board.
CH340G Replace FT232RL
8 analog inputs ports:A0 ~ A7
14 Digital input / output ports:TX,RX,D2 ~ D13
6 PWM ports:D3, D5, D6, D9, D10, D11
1 pairs of TTL level serial transceiver ports RX / TX
Using Atmega328 AU
There is bootloader installed in it
Support USB download and Power
Support for external 5V ~ 12V DC power supply
Support power supply by 9V battery
Support ISP download
Atmega328P-AU and Atmega328P-MU Chip is same function
