Reolink 5MP 8MP 12MP IK10 Vandalproof PoE Security Camera 2.8mm Lens

Comparison of Product Parameters

Model Name

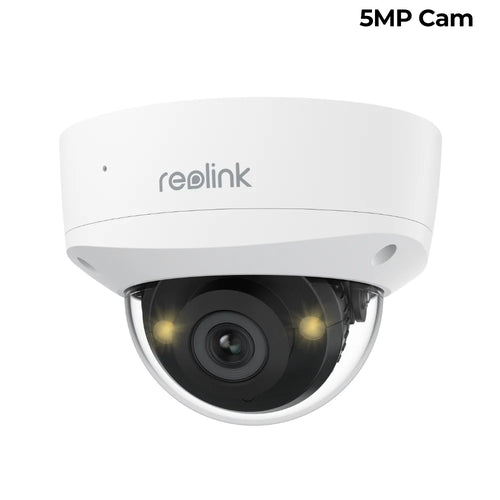

5MP Cam

8MP Cam

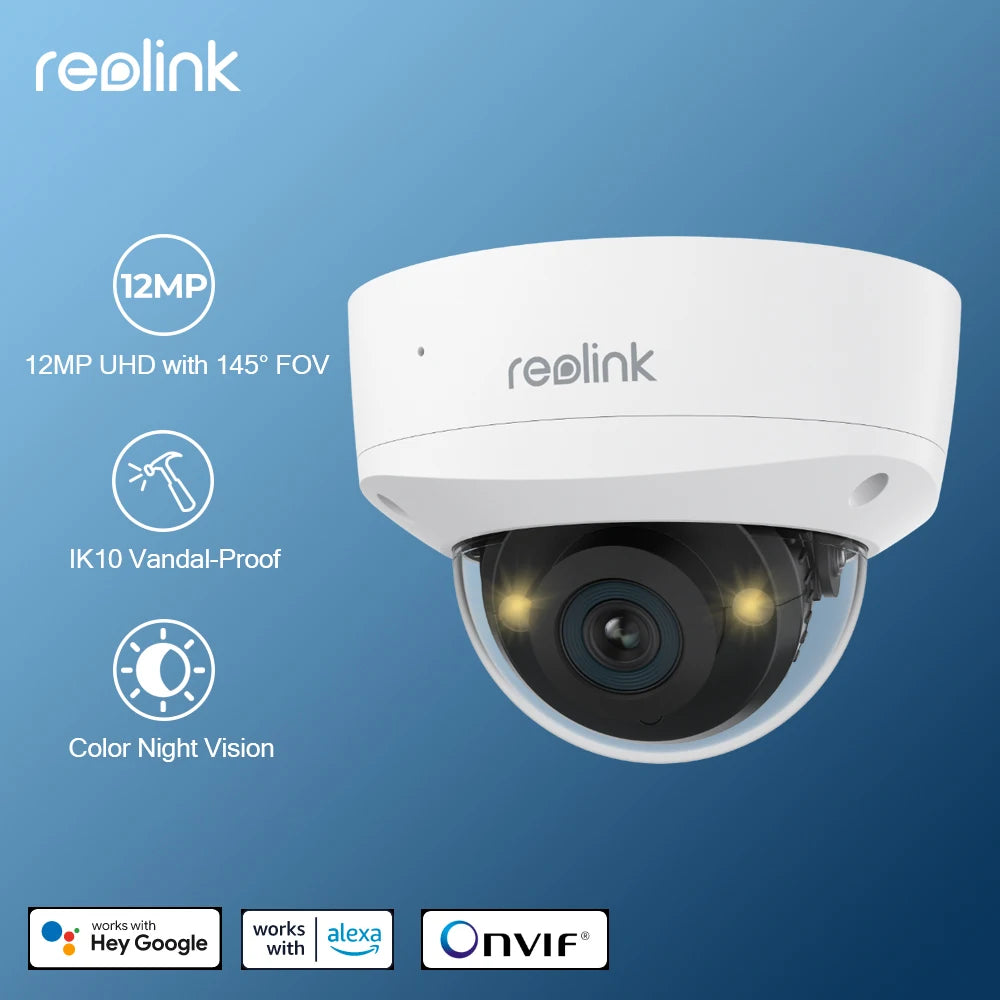

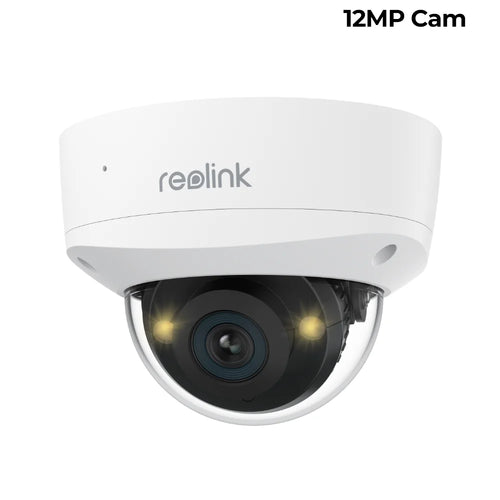

12MP Cam

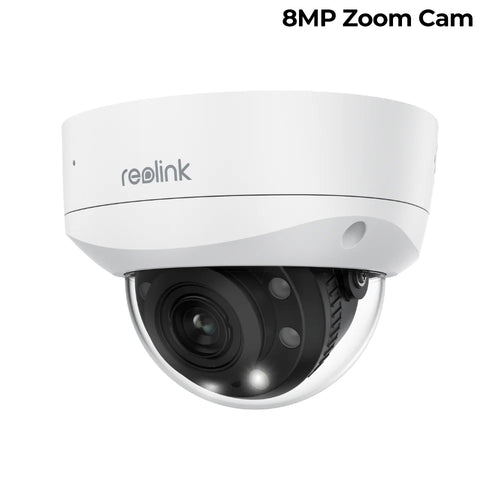

8MP Zoom Cam

Appearance

Image Sensor

1/2.7" CMOS

1/2.49" CMOS

1/2.49" CMOS

1/2.8" CMOS

Default Video Info

2560X1920(5MP)@30FPS

3840X2160(8MP)@25FPS

4512x2512 (12MP) @20FPS

3840X2160(8MP)@25FPS

Lens

f=2.8mm; F=2.0

f=2.8mm/F1.6

f=2.7-13.5mm; Max F=1.6

Zoom

10X Digital zoom only

5X optical zoom&
10X digital zoom

Video Format

H.265,H.264

Field of View

H: 100°; V: 75°; D: 130°

H: 105°; V: 56°; D: 125°

H: 115°; V: 59°; D: 138°

H: 100°-31°; V: 55°-17°;

D: 123°-39°

Night vision

Color night vision; IR night vision up to 100 ft

Color Night Vision

via Spotlight

2pcs/3w/3000K (Adjustable)

2pcs/3.2W/6500K

(Adjustable)

Audio

2-way audio

Power

DC12V /1A & PoE (IEEE 802.3af, 48V active)

System

Reset Button

Ethernet

One 10M/100Mbps RJ45

Storage

Micro SD Card Slot (support up to 256GB micro SD card)

Frame Rate

2-30FPS

2-25FPS

2-20FPS

2-25FPS

Code Rate

Main stream: 1024Kbps - 8192Kbps (default: 6144Kbps)

Main stream:

1024Kbps - 10240Kbps

(default:8192Kbps)

Main stream:

1024Kbps - 8192Kbps

(default: 6144Kbps)

Sub stream: 64Kbps - 512Kbps (default: 256Kbps)

Sub stream: 128Kbps -1228Kbps (default: 1024Kbps)

Sub stream: 64Kbps - 512Kbps (default: 256Kbps)

Browsers Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection; person detection; vehicle detection; animal detection

Record Mode

Motion-triggered recording (default); Scheduled recording, 24/7 recording

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP,HTTP,IPv4, UPnP, RTSP, RTMP,
ONVIF, SMTP, NTP, DHCP, DNS, DDNS,FTP, P2P

HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP,ONVIF, SMTP, NTP, DHCP, DNS, DDNS,FTP, P2P

Maximal User Access

20 users (1 admin account & 19 user&administrator accounts);
supports up to 12 simultaneous video streams (10substreams & 2 mainstreams)

Work with

Alexa(*Beta),Google Assistant

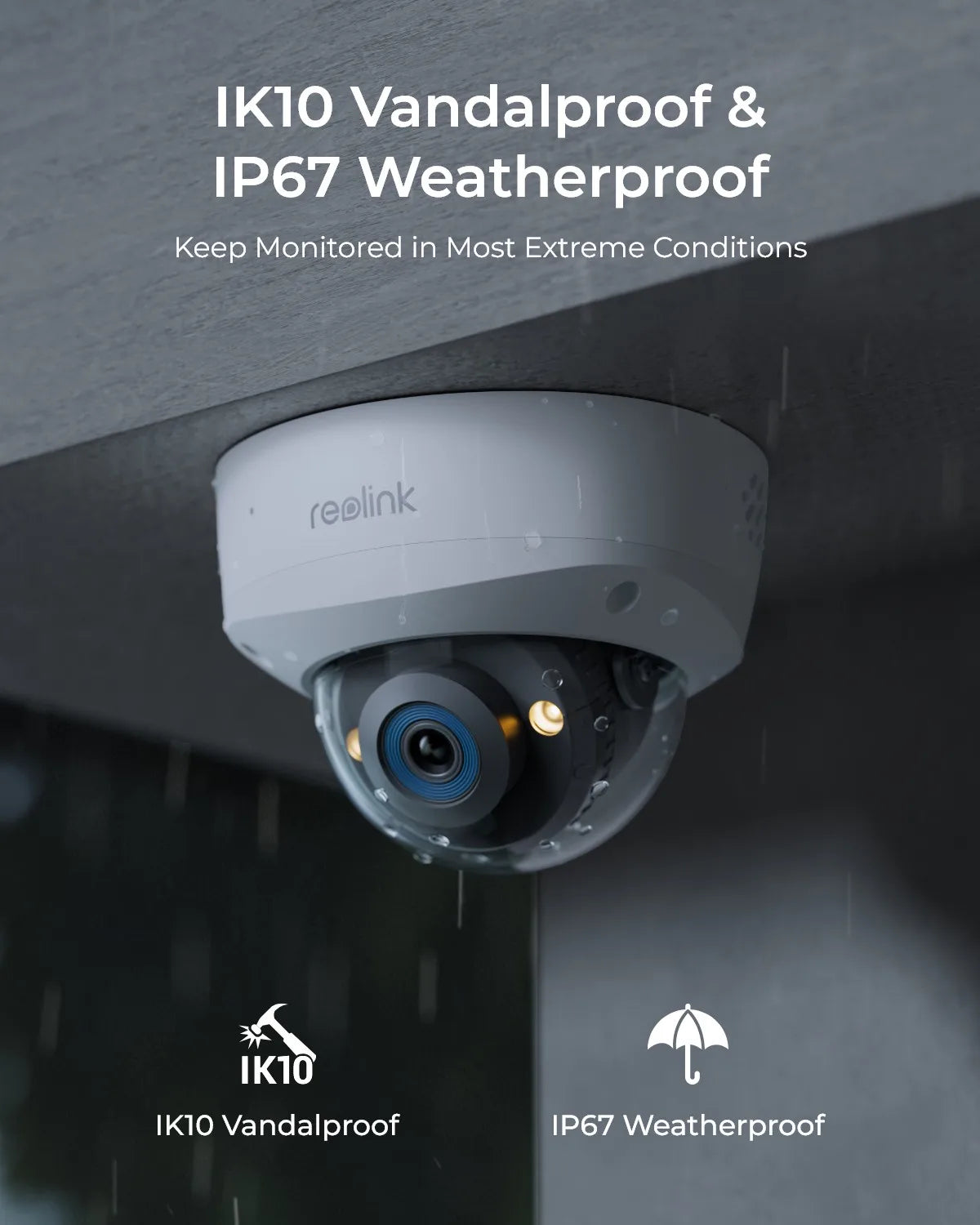

Waterproof

IP67

Vandal proof

IK10

Remote access & alerts

√

Continuous recording

√

Time lapse

√

Works with
Reolink PoE NVR

√

Works with
Reolink IoT devices

√

FTP

√

RTSP

√

Temperature

-10℃~+55℃ (14°F~131°F)

Humidity

10%~90%

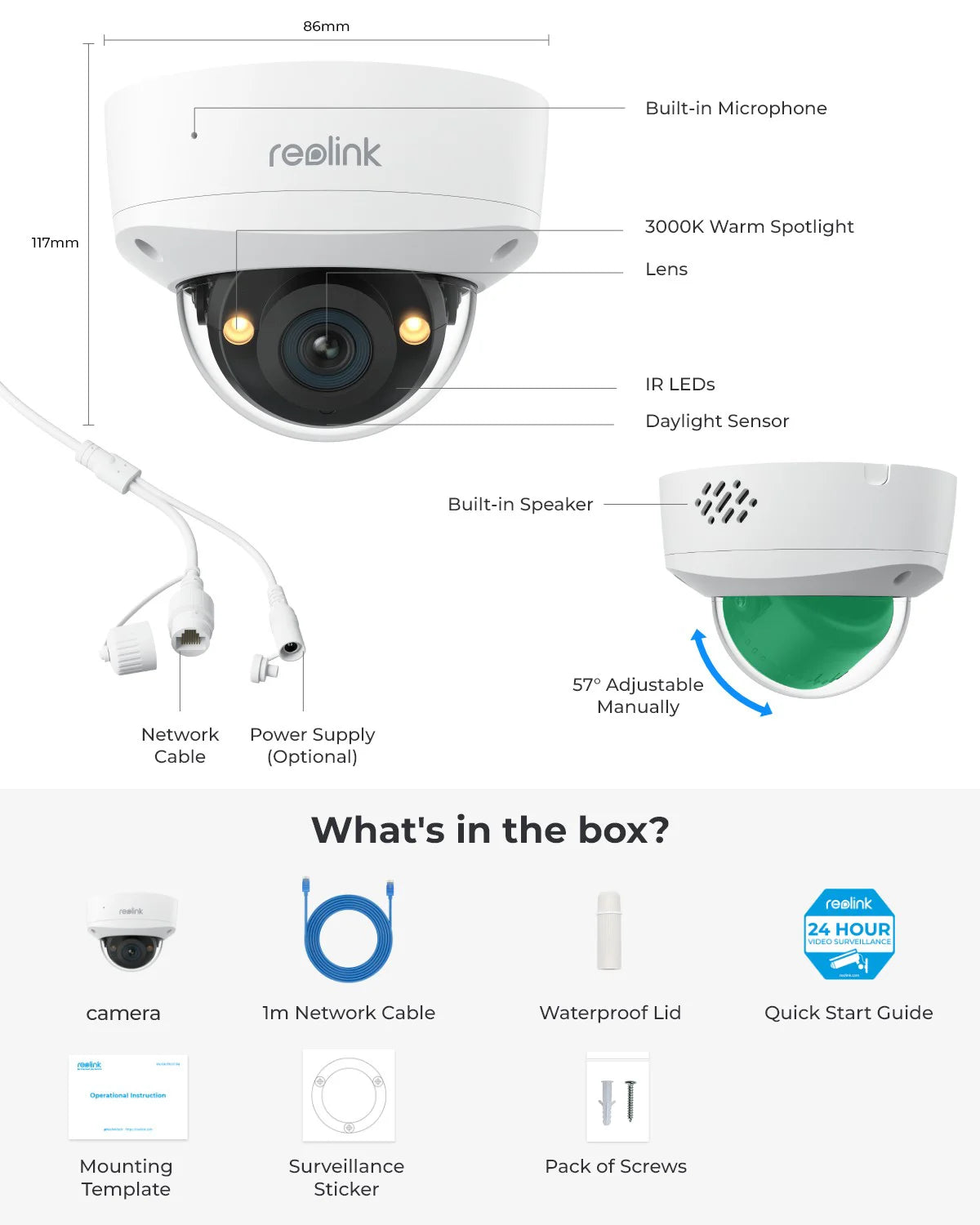

Dimension

Φ117x 86mm

Φ117x 86mm

Φ117x 86mm

Φ132.7x 98.3mm

Weight

570g

604g

570g

751g

Recommended application scenarios

Garage, cinema, warehouse, shopping mall, hospital, etc.

limited warranty

2-year limited warranty
