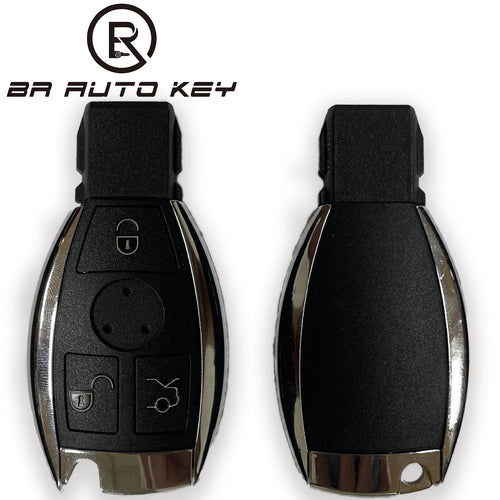

Xhorse VVDI BGA BE Key Fob For Mercedes Benz C260 E200 E260 E300 -2014

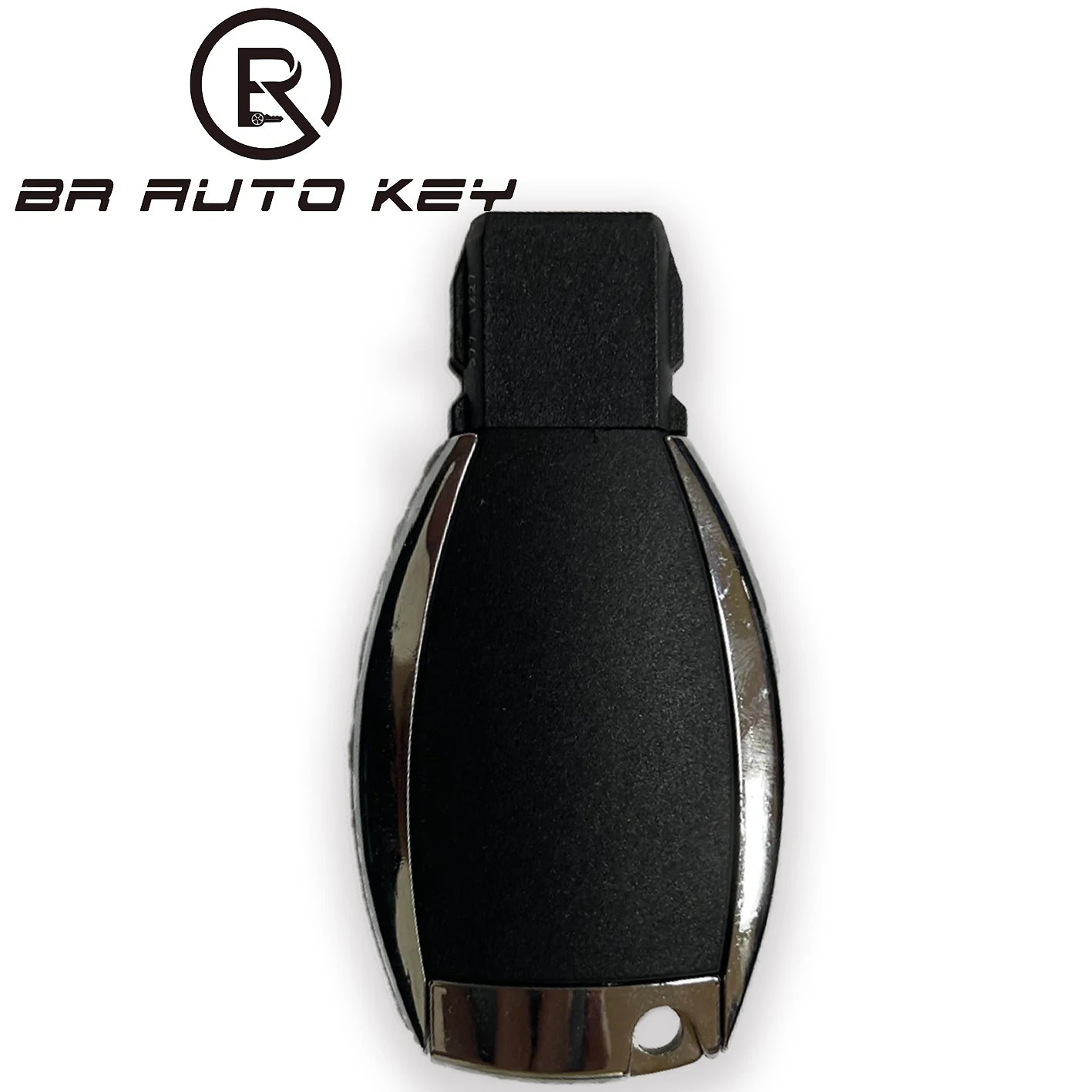

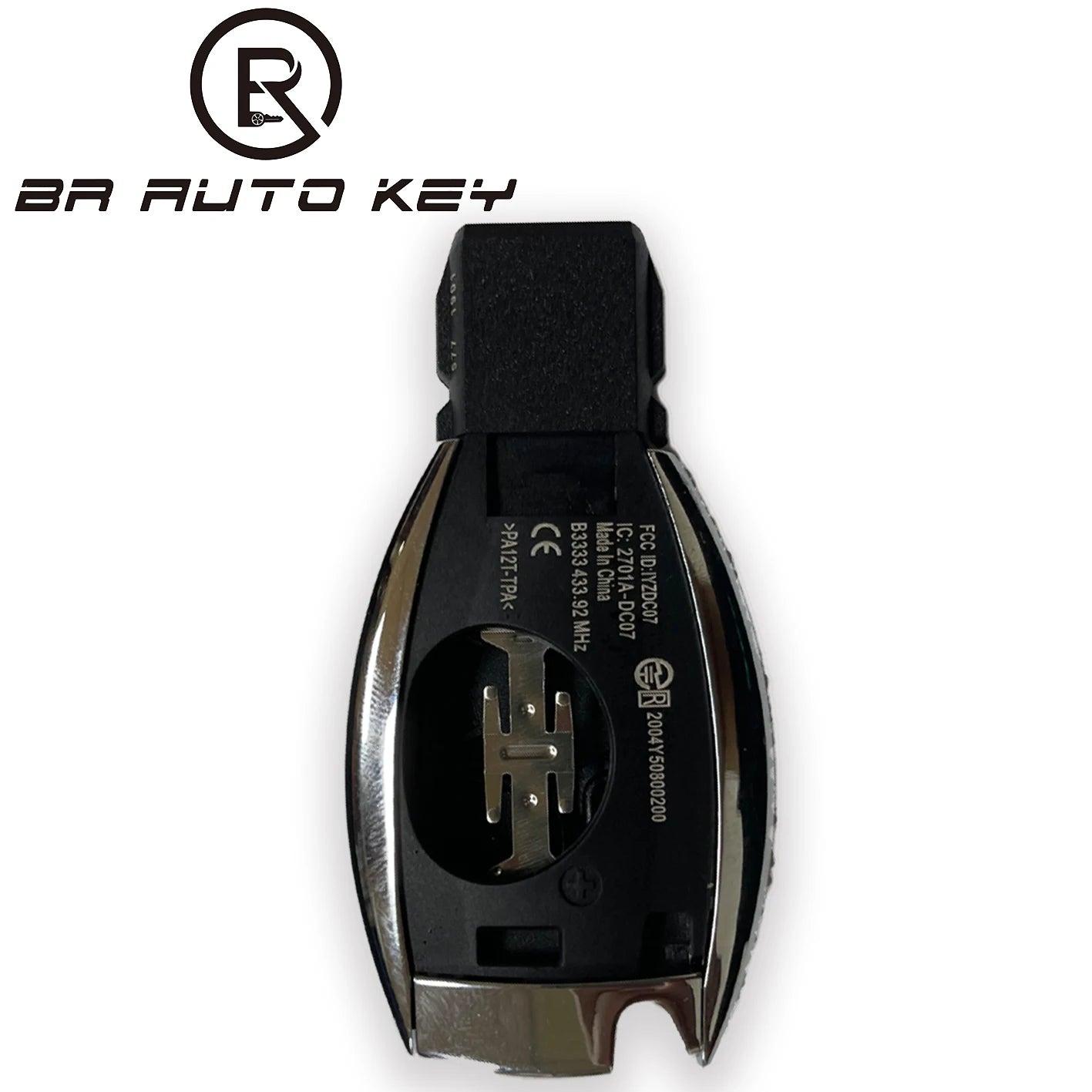

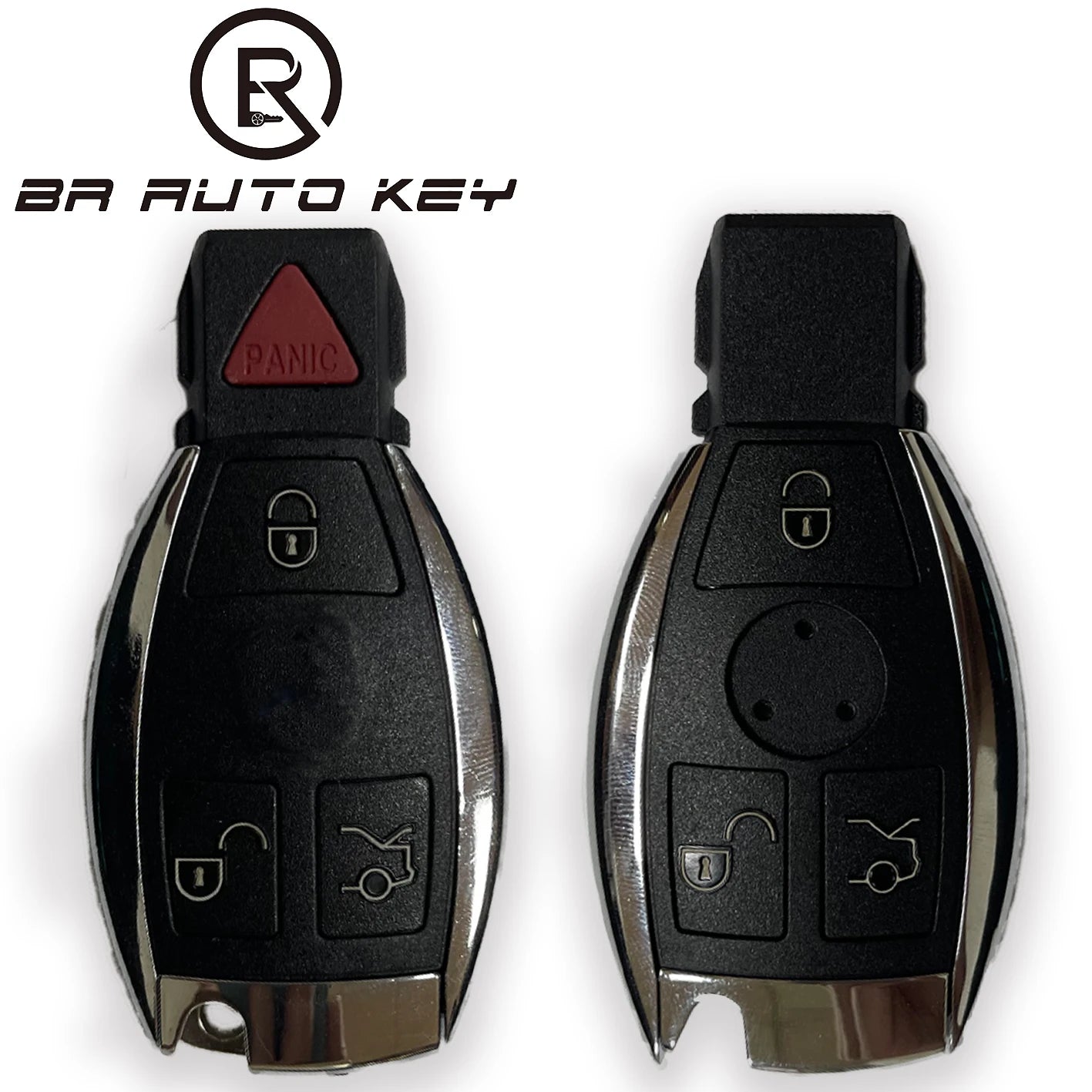

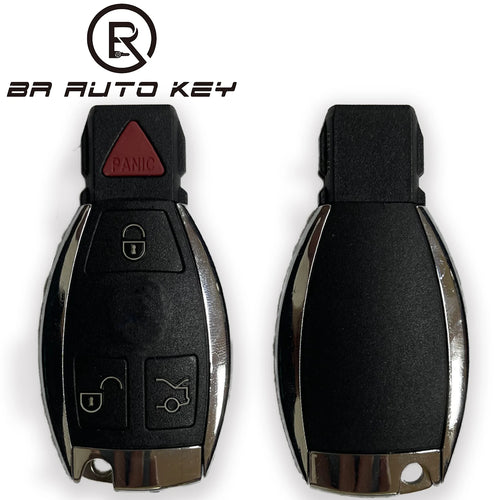

Smart Key Shell 3 Button for Mercedes Benz Assembling with Original Xhorse VVDI BE Key Pro Perfectly

Original XHORSE VVDI BE Key Pro

Get VVDI MB BGA Token freely !

1 VVDI BE Key Pro Improved Version = 200 VVDI MB BGA Tool Points= 1 VVDI MB BGA Token
1 VVDI MB BGA Token = 25 USD ( 1 pcs vvdi mb key pro is equal to saving 25 dollars )

Xhorse VVDI BE Key Pro Features

More compatibility
New design
High Stability
High reliability
Digital Signature

VVDI BE key Pro improvements

1. Fix the bug that W164/W639 EIS data doesn't synchronize the key.
2. Fix the bug/faultthat the BE key stop work after repeatedly turn ON the ignition without remove key out from EIS/EZS for example with work on
3. Fix the bug/faultof trunk remote open on cars where power lifts on trunk door
4. Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key.
5. Modify the rolling algorithm, fix some errors of BE key.
6. Add pre-roll algorithm: the HASH value can roll ahead.
7. Adopt car-grade quartz crystal, improve infrared communication stability.
8. Boost the infrared signal when you press the button.

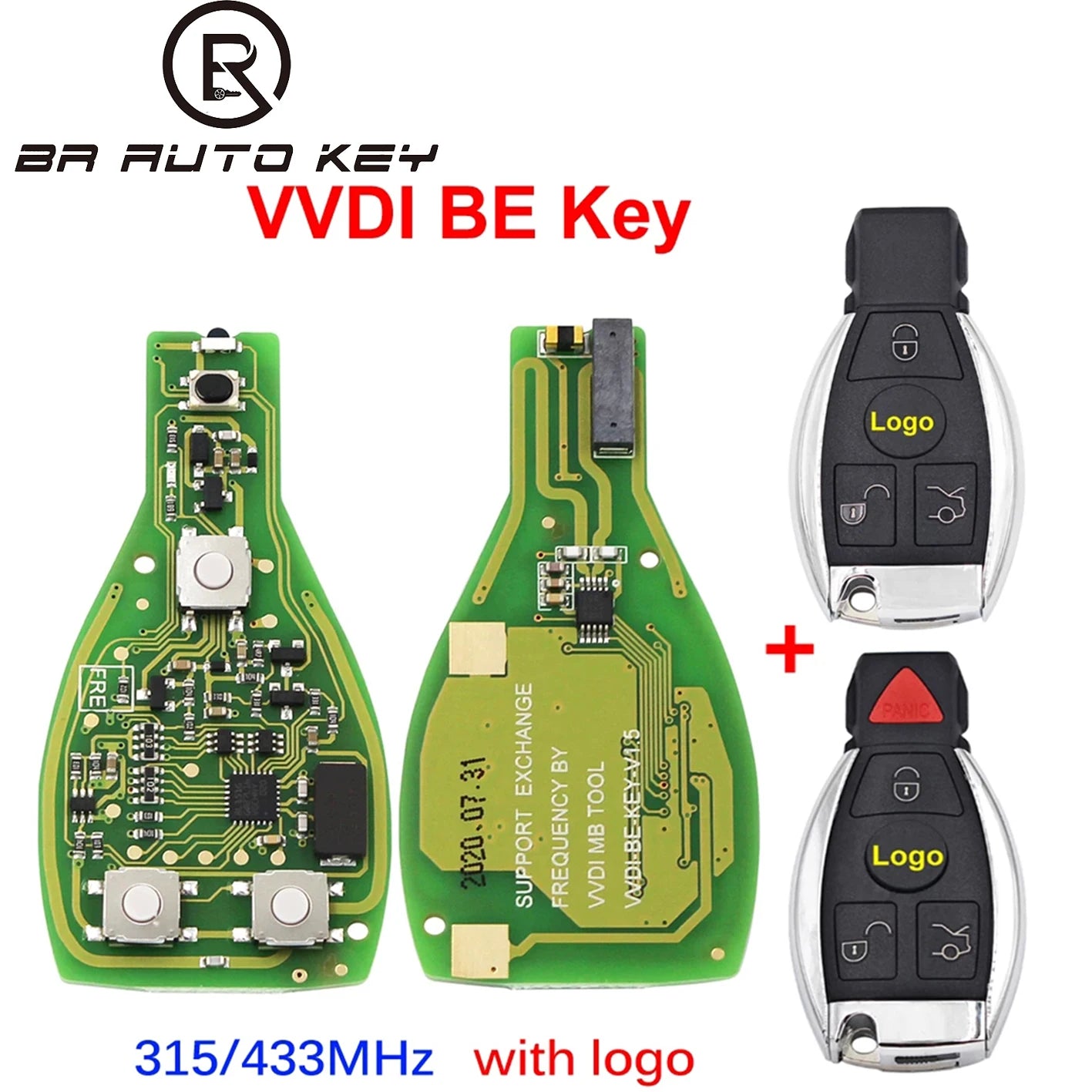

9. Support resetting the key frequency between 315MHZ and 433.92 in the way of VVDI MB tool or the PCB SMD resistor

Notes

Tip: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.

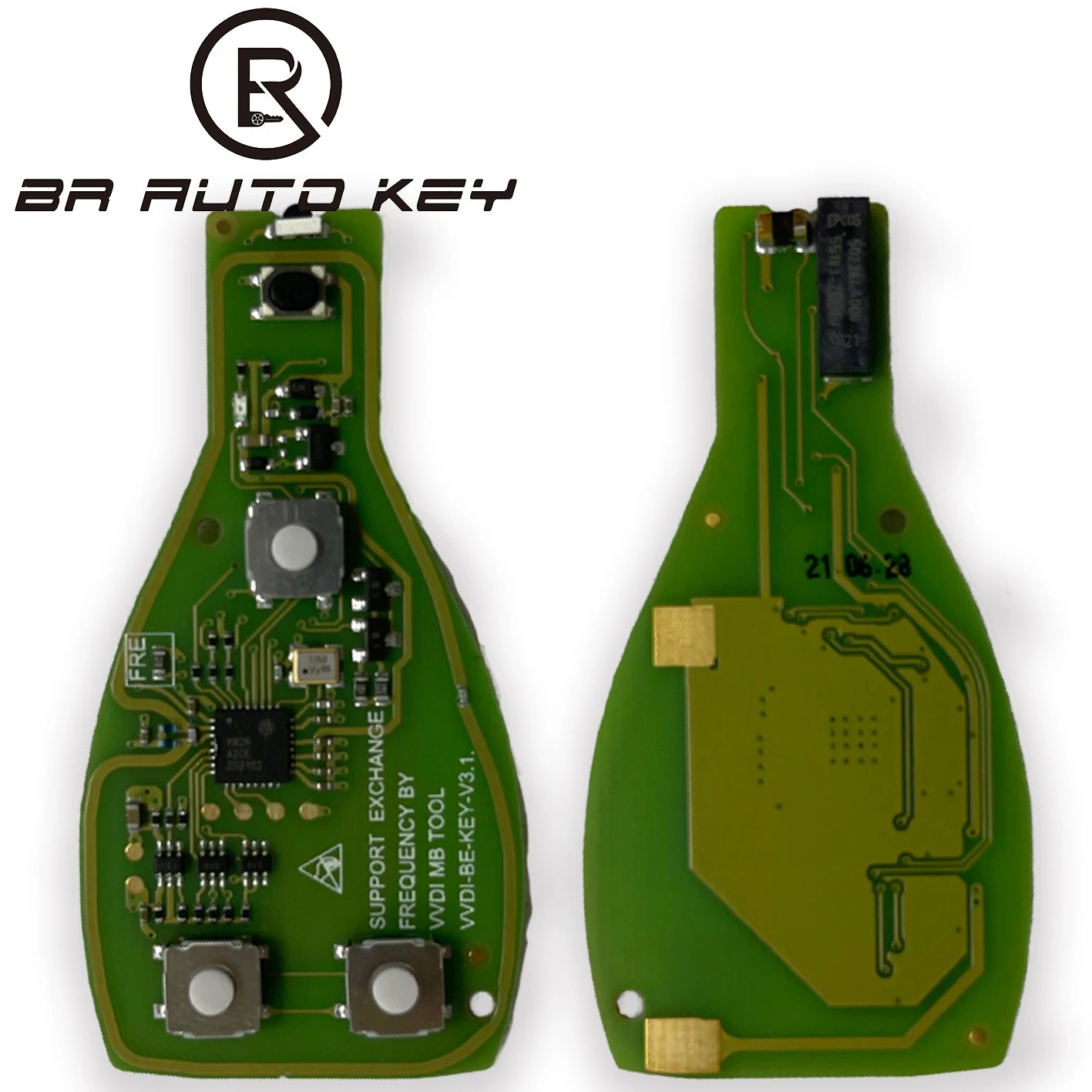

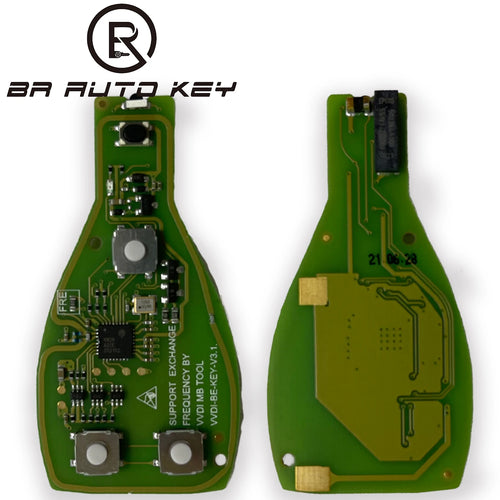

The way to reset the frequency with the PCB SMD resistor:

Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHZ, after remove it will be 433.92MHZ.
