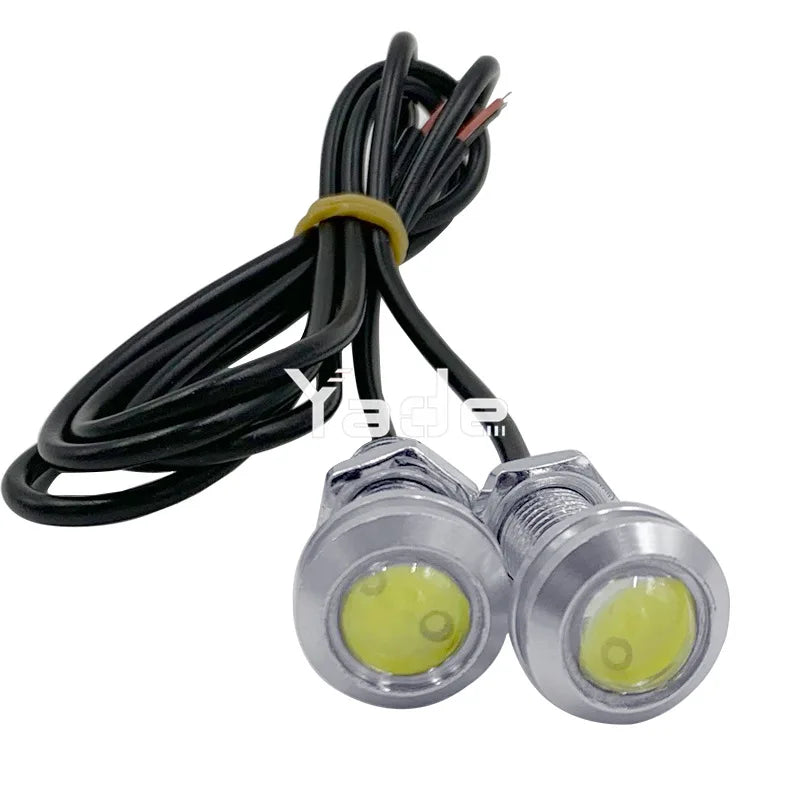

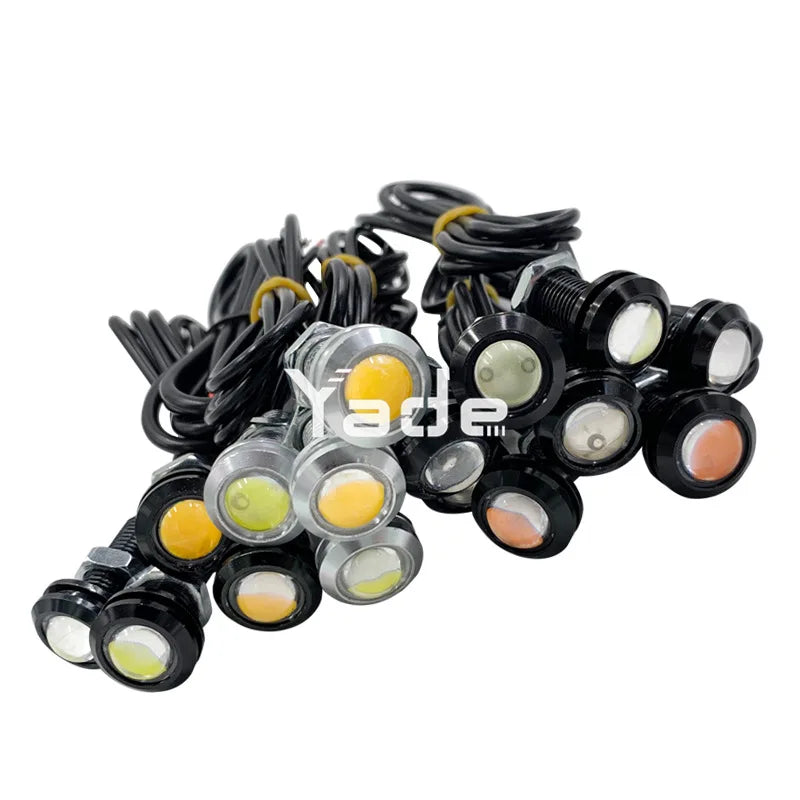

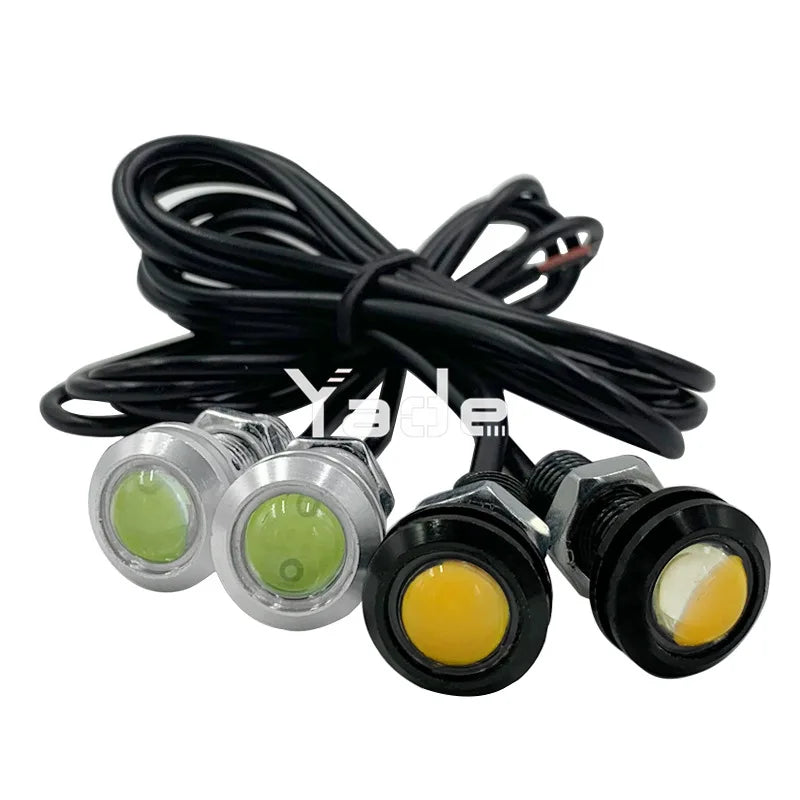

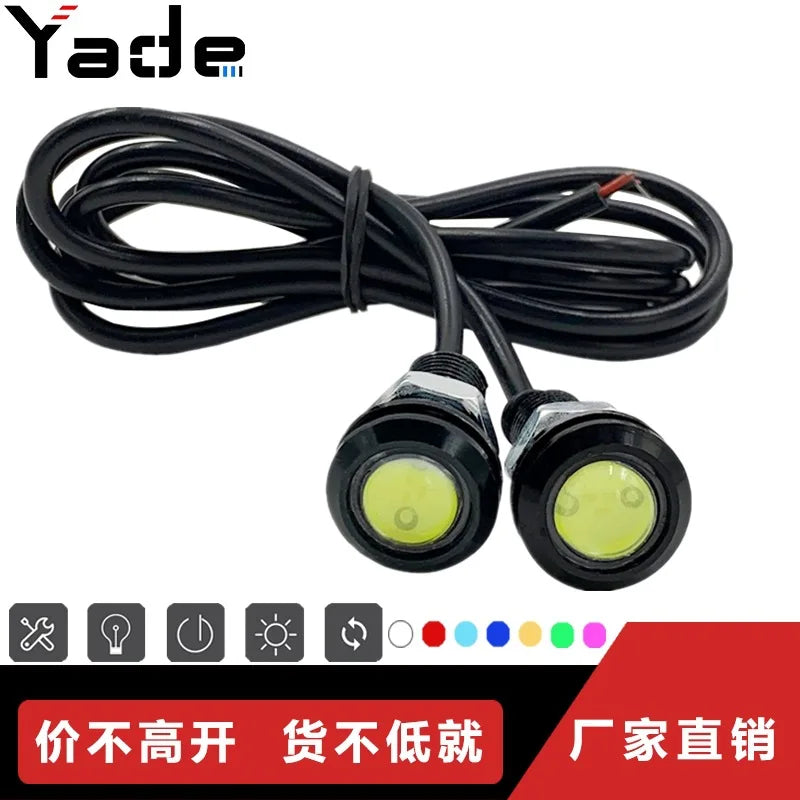

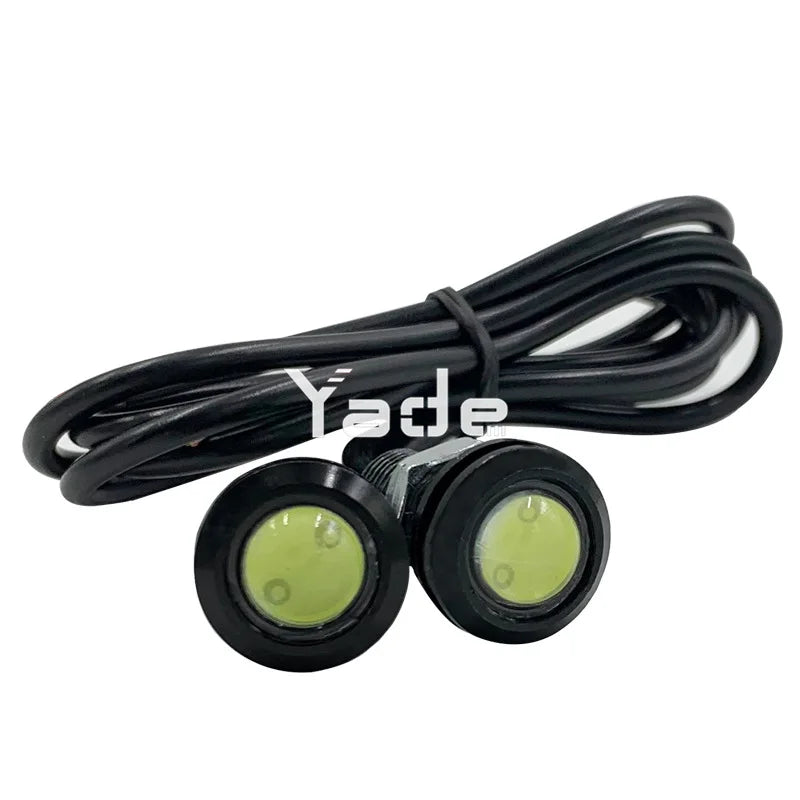

Yade automobile led eagle-eye lamp 18mm 9W ultra-thin rogue screw

First, who is the daytime running light

The daytime driving lamp (LED daytime driving lamp) is a new type of green electric light source for vehicles, which has passed the RDW E4 standard certification. The whole set of lamps has no pollution, no noise and no electronic interference. Because of the advanced constant current control technology, the luminescence is uniform, the light color is full and the lasting constant.

2, Basic product information

1. Name

Hawk Eye lamp rogue reversing lamp Automobile decorative lamp LED diurnal lamp imported wick

Length specification

Diameter: 1.8cm

2. material

Zinc alloy, led, spotlight lens

3. Lamp composition

Each lamp is composed of circuit board, reflective bowl, lamp shell, lampshade and cable. There are screws on the back.

III. Main technical indicators

1, rated operating voltage: DC 12V

2. rated total working current: dc0.06a.

IV. Reference indicators:

1. voltage: VDC.12

2. Features: with steering; good sealing performance; anti dust; anti-collision; anti splash; safe and reliable.

3. brightness: MCD.10000-12000

4. Safety: 12V safety voltage, double insulation, no harm to human body when used in rain water.

5, longevity: light source service life of 5-10 million hours.

6. Usage: connect the red wire to the positive pole of the battery, and connect the black wire to the negative pole of the battery

5, Main technical indicators of LED light emitting diodes:

1. color temperature range 6000-6700 K

2. Rated working current ≤ 300 Ma

3. Current stability ≤±2 mA (24 within 24 hours)

4. Brightness between 70-90lm (right and left strictly symmetrical)

6, Electronic protection

1. High voltage protection

When the power supply voltage is more than or equal to 15.5v, the control part will be separated automatically, and the LED lamp will work directly from the external power supply to protect the control module from damage.

2. Low voltage protection

When the power supply voltage is less than 9V, the LED lamp will turn off automatically and the system will be protected.

3. Loss of frequency protection

When the control frequency is abnormal, the LED light is automatically switched off to protect the control module and the LED light.

4. Wrong connection protection

- - the two cables of LED lamp, namely VBB (black) and VC (red), are wrongly connected without any damage to the circuit. If the wrong light is not on, the lamp will be on when it is connected to the right one. It can be controlled by dimming, which is very convenient for installation.

VIII. OTHER PERFORMANCE

1. Anti vibration

The vibration resistance of lamps and lanterns meets the requirements of relevant technical specifications of automobile industry

2. Water resistance and corrosion resistance

The water and corrosion resistance of lamps and lanterns meet the requirements of relevant technical specifications of automobile industry
